B-Tech Flat Screen Wall Mount with Slide-Out AV Storage Tray (VESA 600 x 400)
£375.22
B-Tech Flat Screen Wall Mount with Slide-Out AV Storage Tray (VESA 600 x 400), 81.3 cm (32"), 177.8 cm (70"), 100 kg, 200 x 200 mm, 600 x 400 mm, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

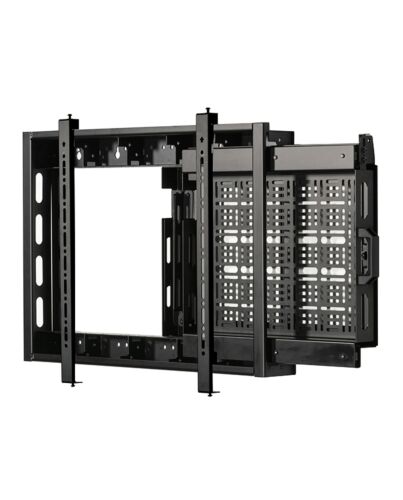

The BT7883 is a screen mounting solution with an integrated slide-out tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7883 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.
Key Features
- Flat screen mount designed to hold & hide AV accessories behind a screen
- Can be mounted so tray slides open on the left or right side of the screen
- Tool-less operation of tray movement
- Interface Arms includes levelling screws to adjust the screen height
- All accessories can be accessed, removed or added when in open position without screen removal
- Quick release function of tray so equipment can be easily removed from tray & serviced
- Locks in closed & open positions & can be secured with a padlock (padlock not included)
- Compatible with B-Tech's System X / Mode-AL columns & with B-Tech collars for pole mounted installations
- Additional trays available for purchase to allow for fast change over of AV equipment
- All mounting hardware included
Specifications
Mounting
Maximum weight capacity*
100 kg
Minimum screen size
81.3 cm (32")
Number of displays supported*
1
Maximum screen size*
177.8 cm (70")
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
200 x 200,600 x 400 mm
Mounting type*
Wall
Ergonomics
Cable management
Yes
Easy to adjust
Yes
Ergonomics
Distance to the wall (max)
10 cm
Design
Product colour*
Black
Weight & dimensions
Width
335 mm
Depth (max)
6.5 cm
Height
424 mm
Logistics data
Harmonized System (HS) code
83024200
Additional Information
| EAN/UPC | 5019318303319 |
|---|---|
| MPN | BT7883/B |
