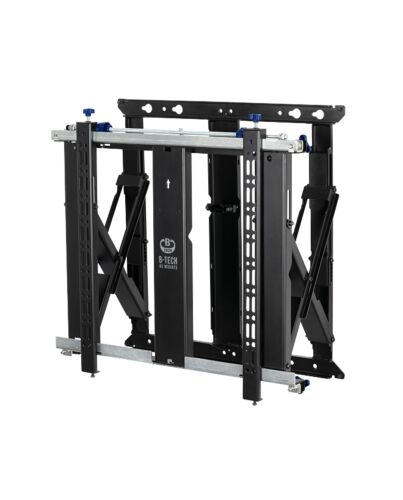

B-Tech Slimline Soft-Open Full Service Videowall Mount with Micro-Adjustment (VESA 600 x 400)
£355.08
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.
Key Features
- Slim design ideal for low profile installs on walls or mounting in recesses
- Modular mount allows video wall assembly in an unlimited number of configurations
- Suitable for landscape or portrait screen mounting
- Pop-out system with soft opening provides a safe and easy service access
- Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment
- Keyhole mounting for quick and easy installation
- Suitable for both wall or pole mounting
- Screen specific wall plate spacers kits are available (separately) to speed up installation times
- Integrated locking mechanism prevents accidental pop-out of mount
- Safety screws help prevent unauthorised removal of screens
- Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately
Specifications
Mounting
Maximum weight capacity*
50 kg
Minimum screen size
106.7 cm (42")
Number of displays supported*
1
Maximum screen size*
177.8 cm (70")
Mounting type*
Wall
Minimum VESA mount*
200 x 100 mm
Maximum VESA mount*
400 x 400 mm
Panel mounting interface
200 x 100,400 x 400,600 x 400
Ergonomics
Distance to the wall (min)
6.31 cm
Ergonomics
Distance to the wall (max)
23.5 cm
Design
Product colour*
Black
Weight & dimensions
Width
620 mm
Height
541.4 mm
Logistics data
Harmonized System (HS) code
83024200
Additional Information
| EAN/UPC | 5019318304545 |
|---|---|
| MPN | BT8312/BV2 |
| BRAND | B-Tech |
