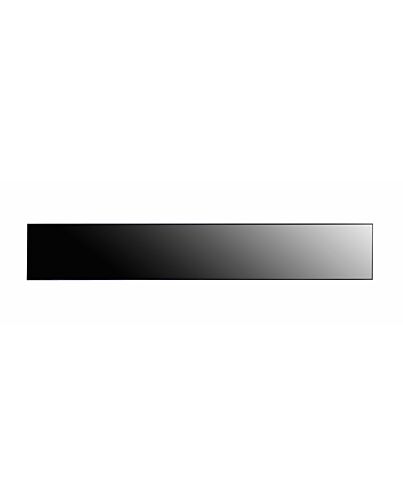

LG 86BH5F-M Signage Display Digital signage flat panel 2.18 m (86") Wi-Fi 500 cd/m² Black WebOS 24/7
£3,590.36
LG 86BH5F-M, Digital signage flat panel, 2.18 m (86"), 3840 x 600 pixels, Wi-Fi, 24/7
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Key Features
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm
- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
Specifications
Display
Panel type
IPS
Display diagonal*
2.18 m (86")
Display resolution*
3840 x 600 pixels
Display brightness*
500 cd/m²
Touchscreen*
No
Response time
8 ms
Contrast ratio (typical)
1100:1
Contrast ratio (dynamic)
500000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Haze rate
3%
RGB colour space
NTSC
Ports & interfaces
HDMI ports quantity*
3
HDMI version
2.2
DVI port*
Yes
DVI-D ports quantity
1
DisplayPorts quantity*
2
DisplayPorts in
1
DisplayPorts out
1
USB port*
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi*
Yes
Audio (L/R) in
1
Audio (L/R) out
1
RS-232C
Yes
Remote (IR) input
1
Audio
Built-in speaker(s)*
No
Design
Product design*
Digital signage flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Design
VESA mounting*
Yes
Panel mounting interface
600 x 200 mm
Bezel width (bottom)
5.9 mm
Bezel width (side)
4.4 mm
Bezel width (top)
5.9 mm
Performance
Purpose*
Retail
Operating hours (hours/days)
24/7
Power
Power consumption (typical)*
220 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
143 kWh
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Heat dissipation
751 BTU/h
Energy efficiency scale
A to G
Computer system
Computer system*
Yes
Internal memory
8 GB
Operating system installed
WebOS
Weight & dimensions
Width
2158.3 mm
Depth
81.7 mm
Height
348.5 mm
Weight
20.5 kg
Packaging content
Remote control included
Yes
Cables included
AC, DisplayPort, IR, IR sensor
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Logistics data
Harmonized System (HS) code
85285210
Technical details
Special features
CB, NRTL, FCC Class "A", CE, KC,
Sustainability certificates
ErP
Additional Information
| EAN/UPC | 8806091607157 |
|---|---|
| MPN | 86BH5F-M.AEK |
