Components

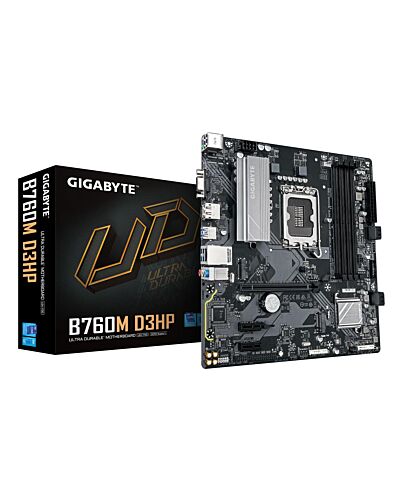

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
£90.91
GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks: GbE LAN
- Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4400,4800,5200,5600 MHz
Supported memory clock speed (max)
5600 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2304 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Parallel connector
Yes
Serial port headers
1
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
2
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone outputs
1
Line-in
Yes
Rear panel I/O ports
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wi-Fi*
No
Features
Motherboard chipset*
Intel B760 Express
Audio output channels*
7.1 channels
Product colour
Brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.21 kg
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Bundled software
Norton Internet Security
Other features
Weight
720 g
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331864347 |
|---|---|
| MPN | B760M D3HP |
