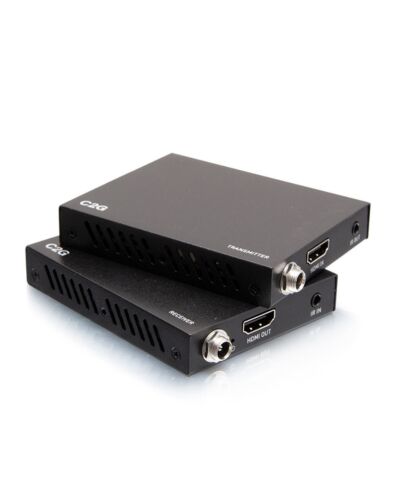

C2G HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
£201.90
C2G HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz, 3840 x 2160 pixels, AV transmitter & receiver, 40 m, Wired, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.
This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations.
Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Signal Specifications
- Video Resolution: Up to 4K resolution at 60Hz, 4:4:4
- Transmitter Input/Output Ports: 1 x HDMI IN; 1 x IR OUT; 1 x RJ45; 1 x DC 12V IN
- Receiver Input/Output Ports: 1 x HDMI OUT; 1 x IR IN; 1 x RJ45; 1 x DC 12V IN
- Audio Formats: Supports Multichannel audio up to PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
Electrical Specification
- Power Supply: Bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Power Adapter: Input: 100-240VAC, 50-60Hz
- Power Adapter: Output: 12VDC, 1A
Physical Specifications
- Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)
- Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)
Physical Characteristics
- Transmitter Dimensions (LxWxH): 90x70x15.2mm
- Transmitter Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- Receiver Dimensions (LxWxH): 90x70x15.2mm
- Receiver Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- DC Jack: OD = 6.3mm, ID = 2.0mm; CU: Nickel Plating
- Power Adapter Cable Length: 1800±50mm
- QC Inspection: Bi-directional PoC Test, max length cable transmission, 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, IR control function test and accessory functionality
This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations.
Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Signal Specifications
- Video Resolution: Up to 4K resolution at 60Hz, 4:4:4
- Transmitter Input/Output Ports: 1 x HDMI IN; 1 x IR OUT; 1 x RJ45; 1 x DC 12V IN
- Receiver Input/Output Ports: 1 x HDMI OUT; 1 x IR IN; 1 x RJ45; 1 x DC 12V IN
- Audio Formats: Supports Multichannel audio up to PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
Electrical Specification
- Power Supply: Bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Power Adapter: Input: 100-240VAC, 50-60Hz
- Power Adapter: Output: 12VDC, 1A
Physical Specifications
- Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)
- Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)
Physical Characteristics
- Transmitter Dimensions (LxWxH): 90x70x15.2mm
- Transmitter Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- Receiver Dimensions (LxWxH): 90x70x15.2mm
- Receiver Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm
- DC Jack: OD = 6.3mm, ID = 2.0mm; CU: Nickel Plating
- Power Adapter Cable Length: 1800±50mm
- QC Inspection: Bi-directional PoC Test, max length cable transmission, 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, IR control function test and accessory functionality
Key Features
- Extend 4K at 60Hz (4:4:4) up to 115ft with Cat 6/6a cable
- Extend 4K at 30Hz (4:4:4) up to 131ft and 1080p at 60Hz up to 164ft with Cat 5e/6/6a cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports multi-channel audio formats, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
- Supports one-way IR pass-through from receiver to transmitter
- Supports bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Slim profile for easy installation
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat6, Cat6a
Maximum transfer distance
40 m
Maximum refresh rate
60 Hz
Cable length
1.8 m
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
HDMI in
1
Number of HDMI outputs
1
Remote (IR) input
1
Remote (IR) output
1
Power
Power source type
AC
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output current
1 A
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
70 mm
Depth
90 mm
Height
15.2 mm
Packaging data
Quantity per pack
1 pc(s)
Additional Information
| EAN/UPC | 757120602200 |
|---|---|
| MPN | C2G60220 |
| BRAND | C2G - LegrandAV |
