Networking

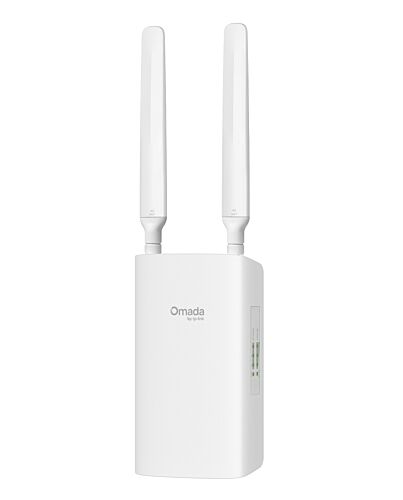

TP-Link Omada Gateway gateway/controller 10, 100, 1000 Mbit/s
£167.62
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- 4G Cat4 up to 300 Mbps
- Wi-Fi 4, Support 150 Mbps on 2.4 GHz†
- 3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
- 1× Nano SIM Card Slot
- 802.3at/bt PoE/Passive PoE/DC Power Supply
- IP55 Weatherproof & 4 kV Lightning Protection
- Load Balancing between 4G and Ethernet WAN
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
- Centralized Cloud Management
Specifications
Design
Product colour*
White
Mounting type
Wall mounting
LED indicators
Status
Features
Antenna type
External
Antennas quantity
2
Short Message Service (SMS)
Yes
Performance
Control display unit*
No
Internal memory
256 MB
Internal memory type
DDR3
Flash memory
128 MB
Protocols
DHCP server
Yes
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Forwarding rate
1419519 Mpps
Networking standards
IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af
Wi-Fi
Yes
Mobile network generation
4G
Data network
LTE
Downlink/uplink speed
150/50 Mbit/s
Frequency band
2.4 GHz
Ports & interfaces
SIM card slot
Yes
SIM card type
NanoSIM
Management features
Web-based management
Yes
Reset button
Yes
Power
Power consumption (max)
10 W
Power over Ethernet (PoE) type supported
Passive PoE
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
100.4 mm
Depth
38.7 mm
Height
174.8 mm
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 90%
Certificates
Certification
CE, RoHS
Additional Information
| EAN/UPC | 1210002620154 |
|---|---|
| MPN | ER603WP-4G-OUTD |
| BRAND | TPLINK |
