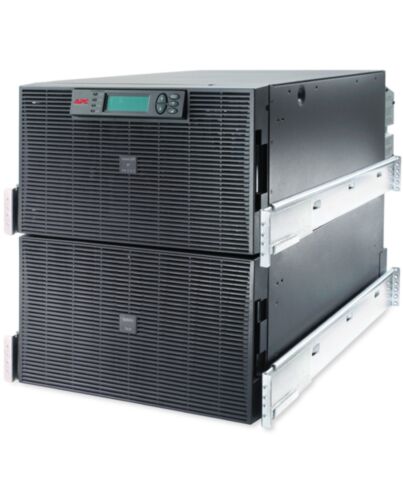

APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
£14,514.43
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
High density, double-conversion on-line power protection with scalable runtime.
Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
20 kVA
Output power*
16000 W
Waveform*
Sine
Input frequency*
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Maximum current
115 A
Number of output phases
1
Efficiency
93.7%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Noise level
59 dB
Surge protection
Yes
Audible alarm(s)
Yes
Auto-restart
Yes
Ports & interfaces
AC outlet types
C19 coupler
Power plug
Terminal
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
Serial interface
Yes
Serial interface type
RS-232
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100Base-T
SmartSlot
Yes
SmartConnect port
No
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
3840 VAh
Typical backup time at full load
4.9 min
Typical backup time at half load
15.2 min
Battery life (max)
5 year(s)
Battery recharge time
2.5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Design
Form factor*
Rackmount/Tower
Design
Rack capacity
12U
Product colour*
Black
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
RoHS
Certification
BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Packaging content
Rack mount kit
Yes
Cables included
RS-232
Management card included
Yes
Manual
Yes
Weight & dimensions
Width
432 mm
Depth
773 mm
Height
533 mm
Weight
247.7 kg
Packaging data
Software CD
Yes
Package width
610 mm
Package depth
1003 mm
Package height
990 mm
Package weight
314.1 kg
Logistics data
Products per pallet
1 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
37662.44
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Web/SNMP Management Card
Additional Information
| EAN/UPC | 731304255710 |
|---|---|
| MPN | SURT20KRMXLI |
| BRAND | APC |
