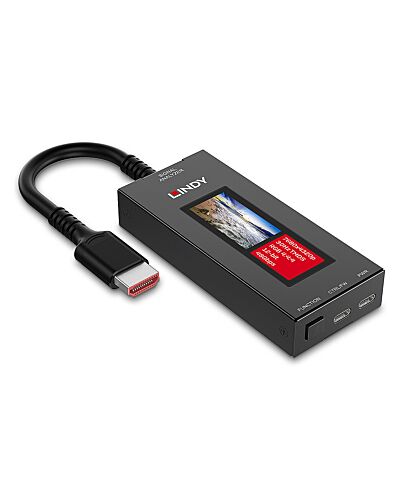

Lindy HDMI 8K60 Signal Analyzer Professional diagnostic tool for HDMI AV signal
£176.17
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This analyzer supports both FRL and TMDS signal analysis, enabling the evaluation of a wide range of HDMI® signal types up to 40G 8K60 resolution.
For -time signal monitoring, the upper display presents comprehensive information, including video image quality, resolution, signal format, color space, bit depth, and bandwidth utilization.
It provides a LCD screen for -time monitoring and browse the options, in addition it can be managed over serial communication though a dedicated USB-C port.
Powered over USB-C port, compact in size yet powerful in capability, the analyzer combines signal analysis, intuitive operation, and reliable performance, making it an ideal tool for HDMI® signal monitoring and diagnostics.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
For -time signal monitoring, the upper display presents comprehensive information, including video image quality, resolution, signal format, color space, bit depth, and bandwidth utilization.
It provides a LCD screen for -time monitoring and browse the options, in addition it can be managed over serial communication though a dedicated USB-C port.
Powered over USB-C port, compact in size yet powerful in capability, the analyzer combines signal analysis, intuitive operation, and reliable performance, making it an ideal tool for HDMI® signal monitoring and diagnostics.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Key Features
- Compact and portable design with LCD screen
- Support resolutions up to 8K60Hz
- Automatic signal detection and recording
- Supports RGB and YUV color space and many audio formats
Specifications
Features
Product type*
Signal analyzer
Product colour*
Black
Housing material
Metal
Control type
Buttons
Colour sampling
4:2:0
Built-in display
Yes
Display type
LCD
Resolution at capture speed
7680x4320@60fps
Colour depth
12 bit
Supported video es
4320p
HDCP version
2.3
Dolby technologies
Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, DTS-HD Master Audio
Maximum bandwidth (HDMI)
40 Gbit/s
HDMI version
2.1
Ports & interfaces
USB port type
USB Type-C
Connector type
HDMI Type-A
USB Type-C ports quantity
2
Power
Power source
USB Type-C
Power consumption
4.6 W
Input voltage
5 V
Input current
1.5 A
Operational conditions
Operating temperature (T-T)
-5 - 55 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 80%
Certificates
Compliance certificates
CE, UKCA, Federal Communications Commission (FCC), RoHS, REACH
Weight & dimensions
Width
260 mm
Depth
48 mm
Height
19 mm
Weight
113 g
Packaging content
Manual
Yes
USB cable
Yes
Packaging data
Package type
Box
Package width
292 mm
Package depth
144 mm
Package height
32 mm
Package weight
305 g
Logistics data
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4002888326957 |
|---|---|
| MPN | 32695 |
| BRAND | Lindy |
