Networking

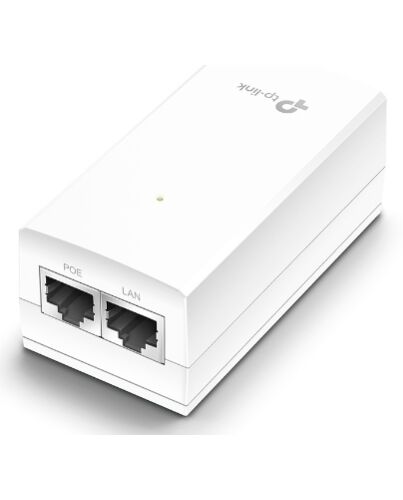

TP-Link 24V Passive PoE Adapter
£9.95
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.
Key Features
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power depends on requirements
- Convenient wall-mounting design
- Plug-and-Play, no configuration required
Specifications
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000
Power over Ethernet (PoE)
Yes
Auto MDI/MDI-X
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Product colour
White
Wall mountable
Yes
Plug and Play
Yes
Maximum operating distance
100 m
LED indicators
Power
Auto-negotiation
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Power
Power over Ethernet (PoE) voltage*
24 V
Output power
12 W
Certificates
Compliance certificates
RoHS
Certification
FCC, CE, RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
32 - 104 °F
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
85.8 mm
Depth
43.9 mm
Height
35 mm
Dimensions (WxDxH)
43.9 x 85.8 x 35 mm
Packaging content
Number of products included
1 pc(s)
Wall mounting kit
Yes
Power cord included
Yes
Packaging data
Package width
60 mm
Package depth
180 mm
Package height
60 mm
Package weight
290 g
Logistics data
Harmonized System (HS) code
85044095
Additional Information
| EAN/UPC | 6935364083342 |
|---|---|
| MPN | POE2412G |
| BRAND | TP-LINK |
