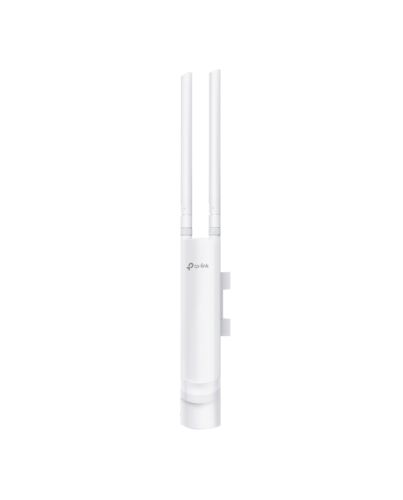

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
£64.26
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all f a single location. It’s network management as it should be - efficient and intuitive.
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all f a single location. It’s network management as it should be - efficient and intuitive.
Key Features
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple ation options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
27 dBm
Transmitting power (FCC)
22 dBm
Security
Security algorithms*
802.1x RADIUS
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Access Control List (ACL)
Yes
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Output voltage
24 V
Power consumption (typical)
10.5 W
Design
Placement*
Pole, Wall
Product colour*
White
International Protection (IP) code
IP65
Reset button
Yes
Antenna
Antenna type*
External
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
2
Antenna gain level (max)
4 dBi
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
215 mm
Depth
46 mm
Height
27 mm
Packaging data
Package width
140 mm
Package depth
270 mm
Package height
100 mm
Package weight
640 g
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002618526 |
|---|---|
| MPN | EAP225-OUTDOOR |
| BRAND | TPLINK |
