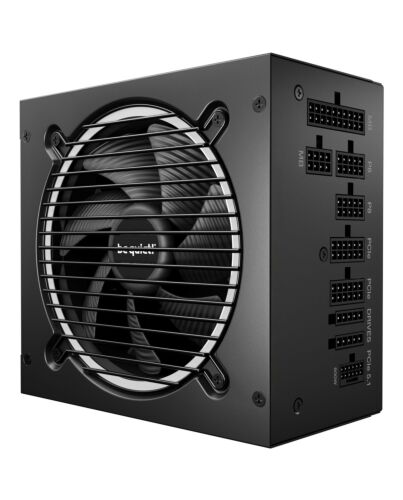

be quiet! Pure Power 13 M | 1200W power supply unit 20+4 pin ATX ATX Black
£138.58
be quiet! Pure Power 13 M | 1200W, 1200 W, 110 - 240 V, 1250 W, 50/60 Hz, 15 A, 7.5 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Exceptional quiet, superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.
Key Features
- 80 PLUS® Gold efficiency (up to 93.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
- Full suite of safety features
- Meets latest requirements for ern standby
Specifications
Power
Total power*
1200 W
Peak power
1250 W
AC input voltage*
110 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
15 A
Maximum input current (@220V)
7.5 A
Power factor
0.97
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
1200 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
100 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
19.11 ms
Efficiency
90.8%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
6
SATA power cable length
500,650,800,950 mm
Number of SATA power cables
2
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
800,950 mm
EPS power connector (8-pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12-pin)
1
PCI Express power cable length
60 cm
CPU P4 connector (4-pin)
2
CPU power connector (4+4 pin)
Yes
CPU power cable length
65 cm
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Noise level
32.3 dB
Performance
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan speed
0 - 2700 RPM
Illumination
No
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 95%
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
2.69 kg
Packaging data
Manual
Yes
Manual languages
German, English, Spanish, French, Polish, Russian, Ukrainian
Package width
220 mm
Package depth
284 mm
Package height
100 mm
Package weight
3.14 kg
Package type
Box
Technical details
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Shipping (inner) case length
59 cm
Shipping (inner) case width
32 cm
Shipping (inner) case height
24.5 cm
Products per shipping (inner) case
6 pc(s)
Shipping (inner) case gross weight
20.8 kg
Other features
Screws included
Yes
Cable ties included
Yes
Additional Information
| EAN/UPC | 4260052193655 |
|---|---|
| MPN | BP029EU |
| BRAND | BEQUIET |
