Networking

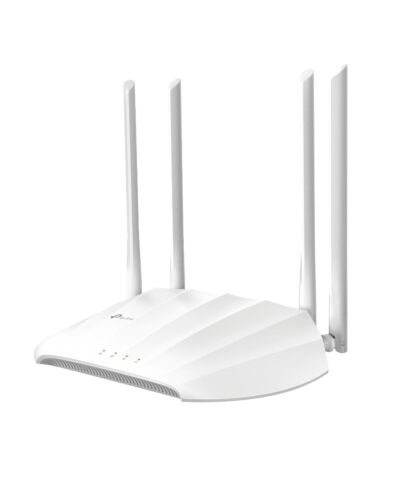

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
£51.97
TP-Link TL-WA1201, 2.4 GHz, 5 GHz, 867 Mbit/s, 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- AC1200 Dual-Band Wi-Fi – Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
- Multiple es – Supports Access Point, Range Extender, Multi-SSID, and Client es to meet any network needs
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Captive Portal – Offers a designed portal page for heightened security and marketing
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
Multicast VLAN
Quality of Service (QoS) support
Yes
Transmitting power (CE)
20 - 23 dBm
Transmitting power (FCC)
30 dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features
Multiple SSIDs
Auto Wireless Distribution System (WDS)
Yes
Access Control List (ACL)
Yes
Protocols
Universal Plug and Play (UPnP)
Yes
DHCP server
Yes
DHCP client
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Active PoE
Output voltage
12 V
Output current
1.5 A
Design
Placement*
Table
Design
Product colour*
White
On/off switch
Yes
Reset button
Yes
WPS push button
Yes
Antenna
Antenna type*
External
Antennas quantity
4
Performance
Compatible operating systems
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Che 20.0, Safari 4.0, or other
Java-enabled browser
Certificates
Compliance certificates
RoHS, Federal Communications Commission (FCC), CE
Weight & dimensions
Width
225 mm
Depth
145.5 mm
Height
37 mm
Packaging data
Package width
400 mm
Package depth
255 mm
Package height
69 mm
Package weight
860 g
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
Yes
PoE adapter included
Yes
Cables included
LAN (RJ-45)
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
Sustainability
Sustainability compliance
Yes
Additional Information
| EAN/UPC | 1210002608527 |
|---|---|
| MPN | TL-WA1201 |
| BRAND | TPLINK |
