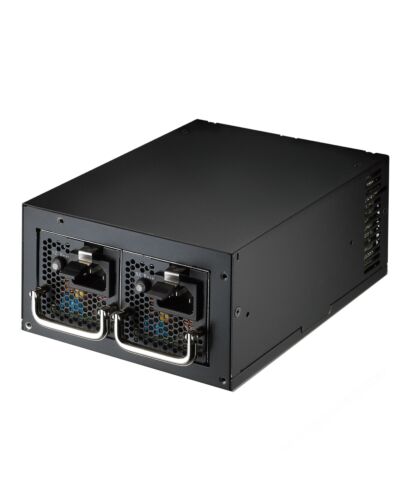

FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black
£521.40
FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black, 900 W, 100 - 240 V, 50 - 60 Hz, 6 - 10 A, Active, 130 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable ules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.
Redundant system design and built-in hot swappable ules
With redundancy in mind, the Twin Pro ular system design is more efficient and operates more quietly by distributing the power load between two hot swappable PSU ules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.
Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.
Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord f acciedntal disconnect helping to ensure stable operation without any system interruptions.
Twins_Pro Power Cord Locking Device
Guardian logoFSP Guardian
Propreitary user interface software that monitors status in -time
Guardian display
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in -time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in -time.
Redundant system design and built-in hot swappable ules
With redundancy in mind, the Twin Pro ular system design is more efficient and operates more quietly by distributing the power load between two hot swappable PSU ules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.
Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.
Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord f acciedntal disconnect helping to ensure stable operation without any system interruptions.
Twins_Pro Power Cord Locking Device
Guardian logoFSP Guardian
Propreitary user interface software that monitors status in -time
Guardian display
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in -time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in -time.
Key Features
- FSP900-50REB
- ATX PS2 redundant size
- Efficiency ≧ 90% at typical load
- Quiet and long-lasting 40mm ball bearing fan
- Ribbon cables for th need of enthusiasts
- Powerful single +12V rail design
- All Japanese electrolytic capacitors
- Intel Latest CPU ready
- Full protections OCP, OVP, SCP, OPP, OTP, FFP, UVP
Specifications
Power
Total power*
900 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
6 - 10 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Max output current (+3.3V)
20 A
Max output current (+12V)
75 A
Max output current (+5V)
20 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3 A
Efficiency
90%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)*
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
Ports & interfaces
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
Server
Power supply unit (PSU) form factor*
PS/2
Bearing technology
DBB
Design
Product colour
Black
Fan diameter
4 cm
Number of fans
2 fan(s)
Packaging content
Cables included
CPU, PCIe, SATA
Weight & dimensions
Width
150 mm
Depth
190 mm
Height
86 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 4713224523823 |
|---|---|
| MPN | PPA9000604 |
