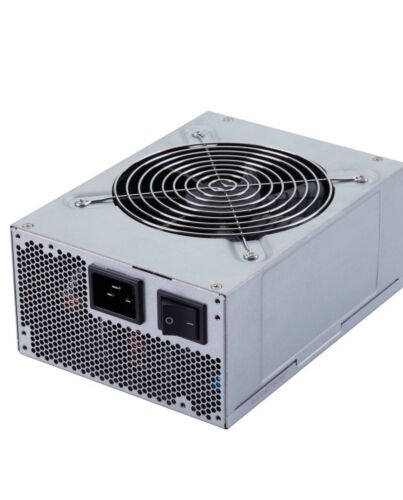

FSP FSP2000-52AGPBI power supply unit 2000 W ATX Silver
£387.73
FSP FSP2000-52AGPBI, 2000 W, 90 - 264 V, 47 - 63 Hz, 6 A, Active, 150 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
FSP2000-52AGPBI is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 2000 Watts and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, FSP2000-A0AGPBI comes with 16 PCI-E 6+2 pin connectors, the power supply is ideally the best choice for server, workstation, GPGPU, even the mining machine/AI/deep learning applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
Key Features
- 80PLUS Gold
- Input Circuit 100% High Voltage Tested
- Up to 16 x PCI-E 6+2 PIN Connectors
- Full ular Design, 200mm Length
- Low Ripple & Noise
- Output Over Voltage Protection
- Short Circuit Protection on All Outputs
- Resettable Power Shut Down
- 100% Burn-In Test Under 50℃ High Ambient Temperature
- MTBF: 100K Hours at 25℃ Ambient Temperature
- 100% Hi-Pot Tested Line Input Fuse Protection
Specifications
Power
Total power*
2000 W
AC input voltage*
90 - 264 V
AC input frequency
47 - 63 Hz
Input current
6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
150 W
Combined power (+5V)
150 W
Max output current (+3.3V)
25 A
Max output current (+12V)
166.6 A
Max output current (+5V)
25 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
4 A
Ports & interfaces
PCI Express power connectors (6+2 pin)
1
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Performance
Purpose*
PC/Server
Power supply unit (PSU) form factor*
ATX
Mean time between failures (MTBF)
100000 h
Design
Product colour
Silver
Cooling type
Active
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 80 °C
Certificates
Certification
CB 62368-1 & CB 60950-1
Weight & dimensions
Width
150 mm
Depth
200 mm
Height
86 mm
Additional Information
| EAN/UPC | 4713224527777 |
|---|---|
| MPN | PPA20A0502 |
