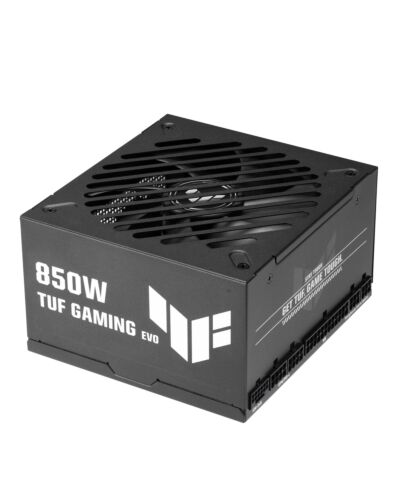

ASUS TUF-GAMING-850G-EVO power supply unit 850 W 20+4 pin ATX ATX Black
£113.83
ASUS TUF-GAMING-850G-EVO, 850 W, 100 - 240 V, Active, 110 W, 850 W, 110 W
In stock
Product Details
Description
TUF Gaming Gold EVO Series
Built For The Long Haul
The ASUS TUF Gaming 850W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Built For The Long Haul
The ASUS TUF Gaming 850W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Key Features
- Military-grade capacitors provide premium durability.
- Dual-Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
- Protective PCB coating protects against moisture, dust, and extreme temperatures.
- 80 Plus & Cybenetics Gold : Japanese capacitors and premium components deliver industry-leading power efficiency.
- ATX 3.1 Compatible: TUF Gaming Gold EVO series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards.
- Fully ular etched cables keep your rig neat and tidy.
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
850 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.83 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
50 cm
Number of SATA power connectors
4
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
400,120 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
50 cm
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
Fan location
Top
Illumination
No
On/off switch
Yes
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.35 kg
Packaging data
Package width
282 mm
Package depth
182 mm
Package height
127 mm
Package weight
2.1 kg
Package type
Box
Additional Information
| EAN/UPC | 4711636287715 |
|---|---|
| MPN | 90YE00SA-B0NA00 |
| BRAND | ASUS ACCESSORIES |
