Components

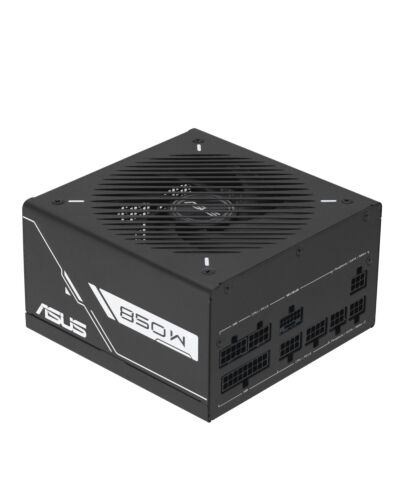

ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black
£104.22
ASUS Prime -850G, 850 W, 100 - 240 V, Active, 110 W, 846 W, 110 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime 850W Gold Black Edition
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
STELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Key Features
- 80 Plus & Cybenetics Gold : the result of low-ESR capacitors and other premium components.
- ATX 3.1 Compatible: Prime Gold series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that can send up to 600 watts of power to PCIe 5.1 graphics cards.
- Dual-ball fan bearings that can last up to twice as long as sleeve bearing designs.
- Fully ular etched cables keep your rig neat and tidy.
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
846 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
5
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)*
4
Peripheral (Molex) power cable length
400,150 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
Fan location
Top
Illumination
No
On/off switch
Yes
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.48 kg
Packaging data
Package width
320 mm
Package depth
213 mm
Package height
113 mm
Package weight
2.88 kg
Package type
Box
Additional Information
| EAN/UPC | 4711636288194 |
|---|---|
| MPN | 90YE00U2-B0NA00 |
| BRAND | ASUS ACCESSORIES |
