Product Details
Description

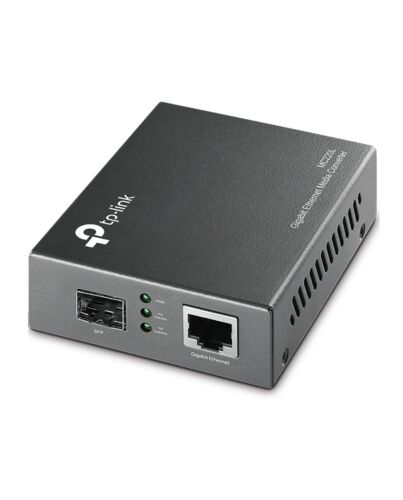

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber ule*.
* TP-Link does not maintain a third party SFP ule compatibility list and does not guarantee all SFP ules work with this product.
* TP-Link does not maintain a third party SFP ule compatibility list and does not guarantee all SFP ules work with this product.
Key Features
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer e
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Cable types supported
Cat5, Cat5e, Cat6
Performance
Maximum transfer distance*
10000 m
Fiber e structure
Multi-e, Single-e
Features
Internal*
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SFP
Power
Power consumption (max)
1.7 W
Weight & dimensions
Width
94 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
65 mm
Package depth
204 mm
Package height
65 mm
Package weight
440 g
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002611084 |
|---|---|
| MPN | MC220L |
| BRAND | TPLINK |
