Components

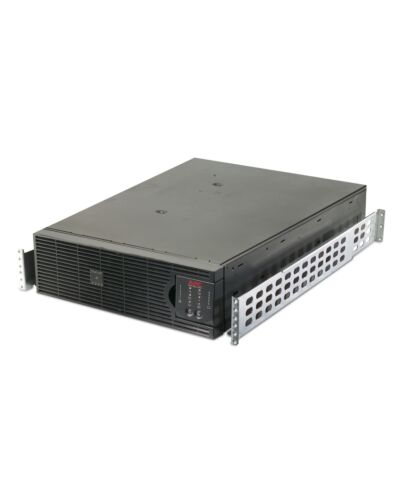

APC Smart-UPS RT 2200VA 230V - Marine
£2,303.39
APC Smart-UPS RT 2200VA 230V - Marine, 2.2 kVA, 1540 W, Sine, 100 V, 280 V, 50/60 Hz
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This el is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
Key Features
- Ideal for providing uninterrupted power in critical marine applications
- DNV type approved
- Hot-swappable, front-accessible, user replaceable batteries
- Manual switch
- Operating temperature up to 55°C
Reasons To Buy
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.Wide input voltage range
Designed for harsh electrical environments to save battery life.Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.Eliminates humming and heat generated when powering tube lights and fans
Provide easy-to-read status of the unit and utility power conditions.Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
Provide easy-to-read status of the unit and utility power conditions.LED Indicators
Provide easy-to-read status of the unit and utility power conditions.Safeguards unit f damage by automatically turning it off in the event of a short circuit or overload.
User assignable inputs allow other equipment alarms to be monitored through the power system controllerEnable management of your UPS by connecting it directly to the network.
If you are like most businesses, you want your systems up and running during your busiest hours. In order to accomate your busy schedule, APC offers an option to schedule services off hours. We will work with you to find a time when servicing your system is least likely to impact your productivity, saving your business time and money.Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspaceAdvanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiencyIntuitive monitoring
Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
Horizontal console port servers can be cascaded to manage up to 1,024 devices.Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.Reduces utility costs, generates less heat.
Patent-pending operating e that es unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Single outlet group that may be controlled separately f the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.UL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.
Warns when a battery is not available to provide backup power.Disconnected battery notification
Warns when a battery is not available to provide backup power.Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Registering s s the features of the data center management software.Allows additional run time to be quickly added as needed.
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.Provides notification of changing utility power and UPS power conditions
Delivers higher availability through redundant batteries.Automatically starts up the connected equipment upon the return of utility power.
Periodic battery self-test ensures early detection of a battery that needs to be replaced.Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipmentEnsures compatibility with equipment that has different plug types.
Simplifies installation and UPS maintenance while minimizing space requirements.Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.Ensures clean, uninterrupted power to protected equipment when generator power is used.
Ensures clean, uninterrupted power to protected equipment while batteries are being replacedHot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replacedMinimizes installation costs by enabling the use of smaller generators and cabling.
Prevents unauthorized access to the UPS.Provides remote power management of the UPS over the network.
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.Protects connected loads f surges, spikes, lightning, and other power disturbances.
Provides early-warning fault analysis on batteries enabling timely preventive maintenanceEnsures compatibility with different input frequencies.
Protects the initial investment in the UPS when migrating f tower to rack-mount environment.Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Provides management of the UPS via a serial port.Serial connectivity
Provides management of the UPS via a serial port.Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Fast, easy installation takes the guesswork out of configuration for first-time usersIntelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Baseline data enables you to better understand your current situation and to measure improvements gained by infrastructure utilization and energy efficiency changes.Specifications
Features
Output power capacity*
2.2 kVA
Output power*
1540 W
Waveform*
Sine
Input operation voltage (min)*
100 V
Input operation voltage (max)*
280 V
Input frequency*
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
555 J
Efficiency
92%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Audible alarm(s)
Yes
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
Ethernet LAN (RJ-45) ports
1
Battery
Battery replacement accessibility
End-user
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
2.5 h
Replacement battery cartridge
APCRBC140
Design
Form factor*
Rackmount
Rack capacity
3U
Cable length
2.5 m
Product colour*
Black
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operational conditions
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
SCIP number
4282bd22-a353-4f82-bb5c-97bbd7f1d1e9
Proposition 65
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Certification
CE; DNV; KCC
Weight & dimensions
Width
130 mm
Depth
660 mm
Height
432 mm
Weight
54.5 kg
Packaging data
Package weight
63.6 kg
Logistics data
Customs product code (TARIC)
8504409590
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
4342.273094382711
Country of origin
Philippines
Other features
Input connection type
BS1363A British; IEC 60320 C20; Schuko CEE 7 / EU1-16P
Dimensions (WxDxH)
130 x 660 x 432 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Output connection type
8 IEC 60320C13; 2 IEC Jumpers; 2 IEC 60320C19
Output voltage
230 V
Mounting
front
Voltage
230 V
Package dimensions (WxDxH)
603 x 980 x 347 mm
Additional Information
| EAN/UPC | 731304286929 |
|---|---|
| MPN | SURTD2200XLIM |
| BRAND | APC |
