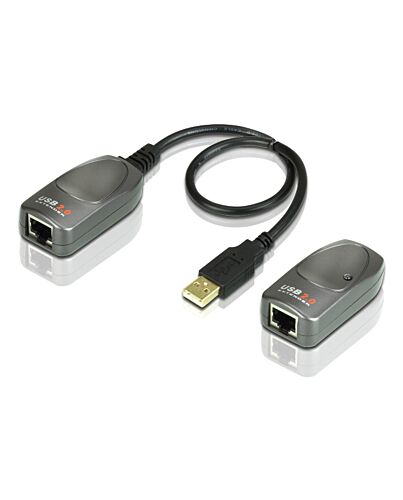

ATEN USB 2.0 Over Cat5e/6 Extender (60m)
£109.14
ATEN USB 2.0 Over Cat5e/6 Extender (60m), 31 mm, 63 mm, 21.9 mm, 170 g, 40 g, 20 g
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
UCE260 can easily send the USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m f your computer, which overcomes the typical USB cable limitation.
1x UCE260 USB 2.0 Extender (1x Local Unit with USB Cable, 1x Remote Unit)
1x 0AD8-1705-26M1 Power Adapter
1x User Instructions
1x UCE260 USB 2.0 Extender (1x Local Unit with USB Cable, 1x Remote Unit)
1x 0AD8-1705-26M1 Power Adapter
1x User Instructions
Key Features
- Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
- Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
- Includes an AC adapter to stabilize power supply
- Hot-Pluggable
- The most cost-effective USB extender solution
- No additional software driver required
Specifications
Technical details
Type*
Console transmitter & receiver
Data transfer rate
480 Mbit/s
Maximum transfer distance
60 m
Product colour
Grey
Housing material
Plastic
Cable types supported
Cat5, Cat5e, Cat6
Plug and Play
Yes
Certification
CE, FCC
Ports & interfaces
USB 2.0 Type-A ports quantity
2
RJ-45 ports quantity
2
DC-in jack
Yes
Weight & dimensions
Width
31 mm
Depth
63 mm
Height
21.9 mm
Weight
170 g
Transmitter weight
40 g
Receiver weight
20 g
Weight & dimensions
Package width
61 mm
Package depth
162 mm
Package height
237 mm
Package weight
335 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging content
Manual
Yes
AC adapter included
Yes
Power
Power source type
DC, USB
Logistics data
Master (outer) case net weight
3.4 kg
Harmonized System (HS) code
84733020
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4719264642647 |
|---|---|
| MPN | UCE260 |
| BRAND | ATEN |
