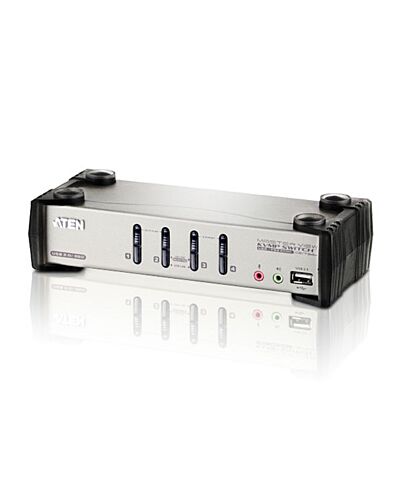

ATEN 4-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
£181.75
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Key Features
- Superior video quality; 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Supports computers with PS/2 or USB keyboard and mouse configurations
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
VGA (D-Sub) ports quantity
1
Console ports*
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
6
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Video bandwidth
60 Hz
Scan interval
1,255 s
DDC2B support
Yes
upgradeable
Yes
Design
Product colour*
Black, Metallic
Housing material
Metal
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
On Screen Display (OSD)
Yes
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
1.02 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
210 mm
Height
55.5 mm
Weight
1.95 kg
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
2.09 kg
Packaging content
Cables included
KVM, USB
Logistics data
Master (outer) case net weight
9.75 kg
Harmonized System (HS) code
85176200
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
11 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423775053 |
|---|---|
| MPN | CS1734B |
| BRAND | ATEN |
