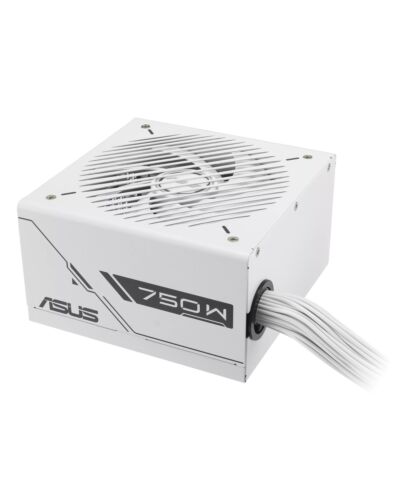

ASUS Prime 750W Bronze White Edition power supply unit 20+4 pin ATX ATX
£74.42
ASUS Prime 750W Bronze White Edition, 750 W, 100 - 240 V, Active, 120 W, 750 W, 120 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ASUS Prime 750W Bronze White Edition PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
Key Features
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
- Etched cables can be bent easily during installation.
- 6-year warranty included.
Specifications
Power
Total power*
750 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
750 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
6
SATA power cable length
120,400 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
120,400 mm
PCI Express power connectors (8-pin)
3
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
80 cm
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
Mean time between failures (MTBF)
120000 h
Design
Product colour
White
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
2.2 kg
Packaging data
Package width
340 mm
Package depth
196 mm
Package height
115 mm
Package weight
3 kg
Package type
Box
Additional Information
| EAN/UPC | 4711636055147 |
|---|---|
| MPN | 90YE00Y3-B0NA00 |
| BRAND | ASUS ACCESSORIES |
