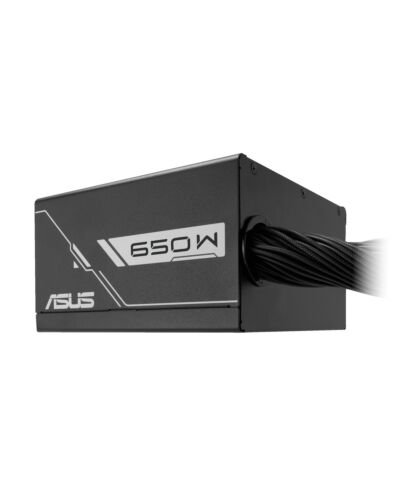

ASUS Prime -650B-BLACK power supply unit 650 W 20+4 pin ATX ATX
£66.49
ASUS Prime -650B-BLACK, 650 W, 100 - 240 V, Active, 110 W, 648 W, 110 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
Key Features
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components
- Etched cables can be bent easily during installation
Specifications
Power
Total power*
650 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
648 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
54 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Number of SATA power connectors
5
SATA power cable length
120,400 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
120,400 mm
PCI Express power connectors (8-pin)
2
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
80 cm
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
Bearing technology
DBB
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Certificates
Compliance certificates
RoHS
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
2.2 kg
Packaging data
Package width
340 mm
Package depth
196 mm
Package height
115 mm
Package weight
3 kg
Package type
Box
Additional Information
| EAN/UPC | 4711387635285 |
|---|---|
| MPN | 90YE00Y1-B0NA00 |
| BRAND | ASUS ACCESSORIES |
