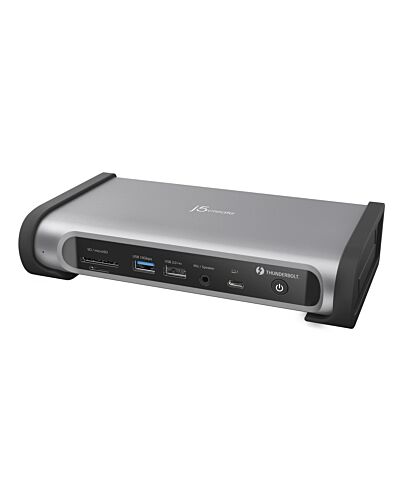

j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-UK, Black
£319.13
j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-UK, Black, Wired, Thunderbolt 4, 98 W, 10,1000,2500,100 Mbit/s, Grey, Dark / Space Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
Key Features
- Providing the ultimate connectivity for Thunderbolt™ 4 laptops
- Intel® Thunderbolt™ 4 for reliability and compatibility
- Providing ultimate connectivity and ultra-high data transfer speeds
- Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
- Supports up to quad or triple 4K displays, dual 5K displays, or a single 8K display with crystal clear image quality
- Perfect for MacBook® and Windows® laptops that support Thunderbolt™ 4
- Power adapter 135W AC adapter with up to 98W PD charge
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
Thunderbolt 4
USB 2.0 ports quantity*
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
98 W
HDMI ports quantity*
2
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Microphone in*
Yes
Combo headphone/mic port
Yes
DC-in jack
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,1000,2500,100 Mbit/s
Performance
Colour name
Dark / Space Grey
Card reader integrated*
Yes
Compatible memory cards
SD, MicroSD (TransFlash)
Data transfer rate
10 Gbit/s
HD type
8K Ultra HD
Maximum digital resolution
7860 x 4320 pixels
Number of displays supported
4
Maximum refresh rate
240 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour*
Grey
On/off switch
Yes
LED indicators
Yes
Charging function
Yes
Housing material
Aluminium
Country of origin
Taiwan
Power
Power source type
DC
Input current
6.75 A
Power supply
135 W
Power
Compatible power plug types
UK
Thunderbolt 4 cable length
0.8 m
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 48 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
201 mm
Depth
43 mm
Height
109 mm
Weight
681 g
Packaging data
Quantity per pack
1 pc(s)
Package width
122 mm
Package depth
237 mm
Package height
94 mm
Package weight
1.69 kg
Packaging content
Cables included
Thunderbolt
AC adapter included
Yes
Manual
Yes
Packaging content
1 - JTD568 Thunderbolt™ 4 Quad display Docking Station
1 - 135W AC adapter with up to 98W PD charge
1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm)
1 - Quick Installation Guide (QIG)
Technical details
Master (outer) case GTIN (EAN/UPC)
24712795088315
Warranty period
2 year(s)
Compliance certificates
CE, REACH, RoHS
Logistics data
Products per master (outer) case
2 pc(s)
Master (outer) case width
207 mm
Master (outer) case length
275 mm
Master (outer) case height
155 mm
Export Control Classification Number (ECCN)
EAR99
Master (outer) case net weight
3.7 kg
Additional Information
| EAN/UPC | 4712795088311 |
|---|---|
| MPN | JTD568-FN |
| BRAND | J5CREATE |
