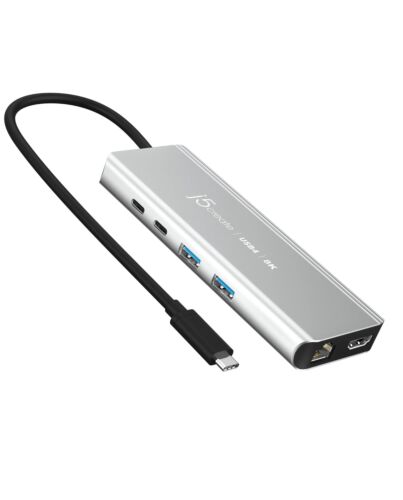

j5create JCD403 USB4® 8K Multi-Port Hub
£72.83
j5create JCD403 USB4® 8K Multi-Port Hub, USB Type-C, HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, 3840 x 2160, 7680 x 4320, 7680 x 4320 pixels, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
Key Features
- Supports resolutions up to 8K
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
- Thunderbolt™ 4, USB4® is required to achieve 8K resolutions
- Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
- One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
- Two SuperSpeed+ USB™ Type-A 10Gbps port to accomate your legacy peripheral
- One USB-C® downstream port supports up to 10Gbps data transmission
- Power Delivery 3.0 offers up to 100W of pass-through charging
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
Specifications
Ports & interfaces
Host interface*
USB Type-C
Hub interfaces*
HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
I/O ports
1- USB-C 3.2 Gen2 10Gbps data transmission
1- USB-C power delivery 3.0 100W
2- USB Type-A 3.2 Gen2 10Gbps data transmission
1- 8K HDMI
1- RJ45 2.5 Gigabit Ethernet
Ports quantity*
6
Ethernet LAN (RJ-45) ports
1
USB Type-C DisplayPort Alternate e
Yes
Features
Data transfer rate*
10000 Mbit/s
Supported graphics resolutions
3840 x 2160, 7680 x 4320
Maximum resolution (HDMI)
7680 x 4320 pixels
Product colour
Grey
Housing material
Aluminium
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HD type
8K Ultra HD
Number of displays supported
1
Cable type
Round cable
Plug and Play
Yes
Country of origin
Taiwan
Compatible products
Available Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops.
GPU and video source:
DisplayPort 1.4 alt e with DSC supports 8K 60 Hz or 4K 144Hz.
DisplayPort 1.4 alt e without DSC supports 8K 30 Hz or 4K 120 Hz.
* DSC = VESA Display Stream Compression (DSC) Standard. Only available on NVIDIA GeForce RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above.
* Recommended Graphics Cards: Intel HD Graphics 620, Intel' HD Graphics 520 or above.
* Notes: Macs supports up to 4K 60Hz on an 8K HDMI display.
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Power
Power supply type
USB/AC
Power supply
100 W
Input voltage
20 V
Input current
5 A
Output voltage
20 V
Output current
4.75 A
Power plug type
Type C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Weight & dimensions
Width
51 mm
Depth
15 mm
Height
135 mm
Weight
109 g
Packaging content
AC adapter included
No
Quick start guide
Yes
Packaging content
1 - JCD403 USB4 8K Multi-Port Hub
1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T)
-1 - 41 °C
Operating temperature (T-T)
30 - 116 °F
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Technical details
Warranty period
2 year(s)
Additional Information
| EAN/UPC | 4712795086614 |
|---|---|
| MPN | JCD403-N |
| BRAND | J5CREATE |
