Laptop Parts & Accessories

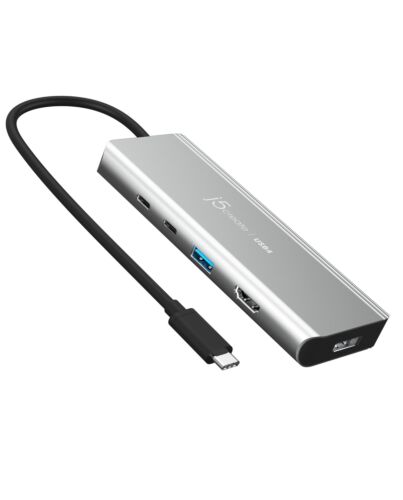

j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver
£72.83
j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 85 W, Silver, 10 Gbit/s, 4K Ultra HD
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller f Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.
With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.
With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.
Key Features
- Intel® USB4® controller ensures industry-leading quality and reliability
- Up to two 4K displays with flexible monitor connections
- 1 DisplayPort™ + 1 HDMI™
- 1 USB-C® + 1 DisplayPort™
- 1 USB-C® + 1 HDMI™"
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- One USB-C® downstream port supports up to 10Gbps data transmission in addition to its DisplayPort™ 1.4 support for 4K @ 60 Hz video output
- One SuperSpeed+ USB™ Type-A 10Gbps port to accomate your legacy peripheral
- Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
Features
Featuring Intel® USB4® Controller
Enhances Dynamic Bandwidth Sharing For Better Video And Optimized Data Transmission
5-in-1 Functions
Multiple connectivity options for greater efficiency
Dual 4K Monitor Setup, Increasing Productivity And Saving Time
Includes a 4K capable DisplayPort™, HDMI™, and USB-C® display output for a dual monitor setup. Thunderbolt™ 3 | 4 compatible and no driver installation is needed. Supports extended desktop e on macOS® and Windows®
* Dual display not supported on certain Apple® M1 or M2 Macs®. Contact your computer manufacturer to verify combability.
* If your dual monitors does not display properly, please manually set the resolution to a maximum of 4K30 to ensure dual 4K display output
Built-in A Multi-Function USB-C® Port
Multi-function USB-C® port supports up to 4K display and 10Gbps data transfer. Let you connect hubs, docks, display, flash-drive, and other USB-C® devices you need
Supports Tunnel Transmission Technology
Multiple data and display protocols efficiently share bandwidth to offer optimal performanceHigh-Speed PD Pass-Through Charging
Charges your laptops and provides power to connected peripherals with up to 85W of PD pass-through charging.Efficient USB™ Ports
Connect your latest and legacy devices with two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripheralsEffective Heat Dissipation
Design features aluminum housing and vents to help dissipate heat effectively and prevent overheatingThunderbolt™ and USB4® Compatible
A high-performing USB4® multi-port hub and the first USB-C® hub to incorporate the latest USB4® controller f Intel®, compatible with Thunderbolt™ 3 and 4, and USB4®
Simple and quick setup with no driver installation needed
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB4 ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
85 W
HDMI ports quantity*
1
DisplayPorts quantity
1
Microphone in*
No
USB Type-C DisplayPort Alternate e
Yes
Network
Ethernet LAN*
No
Performance
Card reader integrated*
No
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Number of displays supported
2
Maximum refresh rate
60 Hz
Product colour*
Silver
Hub interfaces
DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort
Plug and Play
Yes
Housing material
Aluminium
Country of origin
Taiwan
Compatibility
Thunderbolt™ 4 computers
Thunderbolt™ 3 computers
USB4® computers
Power
Power source type
USB
Power connector
USB Type-C
Output voltage
20 V
Output current
0.25 A
Power consumption (typical)
1.25 W
USB cable length
0.2 m
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operational conditions
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
51 mm
Depth
200 mm
Height
135 mm
Weight
109 g
Packaging data
Quantity per pack
1 pc(s)
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
177 g
Packaging content
Cables included
USB Type-C
Quick start guide
Yes
Manual
Yes
Technical details
Master (outer) case GTIN (EAN/UPC)
24712795086342
Warranty period
2 year(s)
Logistics data
Products per master (outer) case
18 pc(s)
Master (outer) case width
226 mm
Master (outer) case length
445 mm
Master (outer) case height
190 mm
Master (outer) case gross weight
4.1 kg
Products per shipping (inner) case
6 pc(s)
Export Control Classification Number (ECCN)
EAR99
Shipping (inner) case width
16.5 cm
Shipping (inner) case length
21.2 cm
Shipping (inner) case height
13.7 cm
Shipping (inner) case net weight
1.2 kg
Other features
Special features
Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
Additional Information
| EAN/UPC | 4712795086348 |
|---|---|
| MPN | JCD401-N |
| BRAND | J5CREATE |
