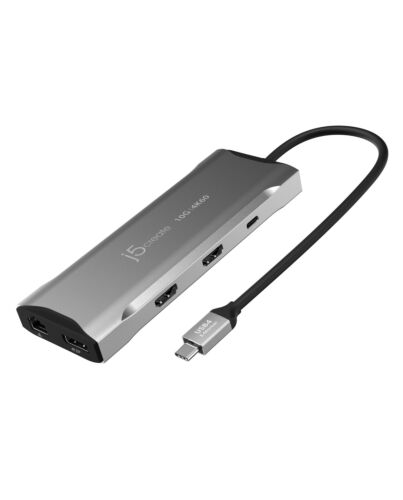

j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock
£75.22
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4a, 10,100,1000 Mbit/s, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, f triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Key Features
- Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.1/3.2
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.
- Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt e with MST support*
Features
11-in-1 Functions
All the connections you need for maximum productivity
4K HDMI™ Output
Mirror or extend your screen and directly output resolutionsup to 4K UHD @ 60 Hz
Triple 4K Display Support
Create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output on compatible USB-C® laptops with DisplayPort™ 1.4 and Multi-Stream Transport (MST)
100W Power Delivery Pass-Through
Use with a USB-C® power adapter for the added ability to charge your laptop and power connected peripherals
SD™ & microSD™ 4.0 Memory Card
Reader/Writer
High-Speed Ethernet Port
Three SuperSpeed USB™ 10Gbps Data Transfer Ports
1 USB-C® and 2 USB™ Type-A for peripheral connectivity or charging
Connect a High-Refresh Gaming Monitor
Supports 144 Hz at 1440p QHD resolution for a smooth gaming experience with sharp images
Quick Setup
Use the device immediately - no driver installation required
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity*
2
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4a
Microphone in*
No
USB Type-C DisplayPort Alternate e
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Colour name
Space Grey
Card reader integrated*
Yes
Compatible memory cards
MicroSD (TransFlash), SD
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Maximum refresh rate
240 Hz
Product colour*
Grey
Display es
Extended, Mirror, Primary display
Plug and Play
Yes
Charging function
Yes
Housing material
Aluminium
Country of origin
Taiwan
Compatibility
Available USB-C® port that supports DisplayPort™ alternate e and USB™ Power Delivery 2.0 or 3.0.
The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
Power
Power source type
USB
Power connector
USB Type-C
Output voltage
5 V
Output current
0.79 A
Power consumption (typical)
4.16 W
USB cable length
0.2 m
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
55 mm
Depth
17 mm
Height
148 mm
Weight
121.4 g
Packaging data
Quantity per pack
1 pc(s)
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
151 g
Packaging content
Cables included
USB Type-C
Quick start guide
Yes
Manual
Yes
Technical details
Master (outer) case GTIN (EAN/UPC)
24712795086328
Warranty period
2 year(s)
Logistics data
Products per master (outer) case
18 pc(s)
Master (outer) case width
226 mm
Master (outer) case length
445 mm
Master (outer) case height
190 mm
Master (outer) case gross weight
3.8 kg
Products per shipping (inner) case
6 pc(s)
Export Control Classification Number (ECCN)
EAR99
Shipping (inner) case width
16.5 cm
Shipping (inner) case length
21.2 cm
Shipping (inner) case height
13.7 cm
Shipping (inner) case net weight
1.06 kg
Other features
Special features
Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
Additional Information
| EAN/UPC | 4712795086324 |
|---|---|
| MPN | JCD397-N |
| BRAND | J5CREATE |
