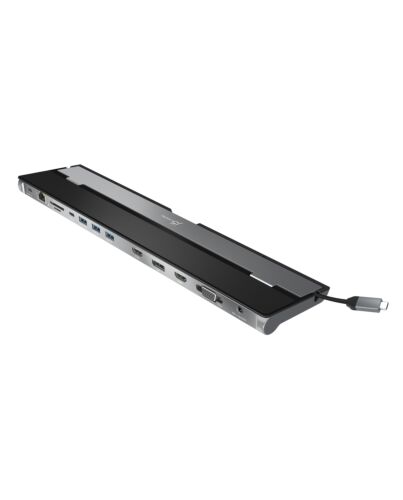

j5create JCD543 USB-C™ Triple Display Docking Station
£69.26
j5create JCD543 USB-C™ Triple Display Docking Station, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, Black, Silver
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The USB-C™ Triple Display Docking Station provides extra connectivity f your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
Key Features
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt e supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
Features
Simultaneous DisplayPort™, HDMI™ and VGA Output
Supports Mirror and Extended es on both Mac® & Windows®.The easiest way to add a second or third display.
HDMI™/DisplayPort™/VGA Output Port
Supports 3 Video Interfaces
DisplayPort™ Alt e for HDMI™ or DisplayPort™ resolution of 4K @ 30 Hz
HDMI™ resolution of 4K @ 30 Hz and VGA resolution of 1920 x 1080 via dual output
Charge your notebook or desktop through the JCD543
SD™/microSD™ Card Reader
Easily manage and backup your data
f your camera, video recorder and more
SuperSpeed USB™ 3.0 Ports
13 ports in one sleek design for all your needs
Double Sided Cable Storage Compartment
Place the cable anyway you likeCutting-Edge Design
The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized workstation without the worry of overheating.Cable Storage with
Dual Openings
Universal Compatibility
Compatible with both Mac® & Windows®
Physical Specifications
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity*
2
VGA (D-Sub) ports quantity
1
Microphone in*
Yes
Headphone outputs*
1
USB Type-C DisplayPort Alternate e
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
Card reader integrated*
Yes
Compatible memory cards
MicroSD (TransFlash), SD
HD type
4K Ultra HD
Number of displays supported
3
Maximum refresh rate
60 Hz
Product colour*
Black, Silver
Hub interfaces
DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Housing material
Aluminium
Country of origin
Taiwan
Power
Input current
5 A
Output voltage
20 V
Output current
0.9 A
Power consumption (typical)
4.5 W
Power
Power plug type
Type C
Software
Windows operating systems supported
Windows 10, Windows 11, Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Operational conditions
Operating temperature (T-T)
0 - 48 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
82.5 mm
Depth
350 mm
Height
23.4 mm
Weight
355 g
Packaging data
Quantity per pack
1 pc(s)
Package width
88 mm
Package depth
358 mm
Package height
28 mm
Package weight
433 g
Packaging content
Cables included
USB Type-C
AC adapter included
No
Quick start guide
Yes
Manual
Yes
Packaging content
1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
Technical details
Warranty period
2 year(s)
Other features
Cable length
0.45 m
Maximum operating temperature
48 °C
Additional Information
| EAN/UPC | 4712795083613 |
|---|---|
| MPN | JCD543-N |
| BRAND | J5CREATE |
