Laptop Parts & Accessories

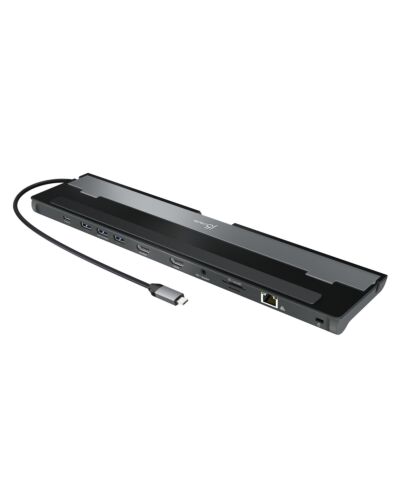

j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey &
£68.21
j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, Black, Grey, MicroSD (TransFlash), SD, 4K Ultra HD
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
Key Features
- Dual displays via HDMI™ outputs
- Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter
- Connect and charge your USB™ devices with 3 x USB™ ports
- Reliable network connectivity via the Gigabit Ethernet port
- Direct access to SD™ & microSD™ memory cards for data storage and transfer
- 3.5mm audio jack to connect microphone/headphone
- Security lock slot for anti-theft protection
- Convenience setup with double-sided cable storage compartment
- Heat-eliminating design
Features
10 Ports In One Sleek Design For All Your Needs
Dual HDMI™ Displays
Create a dual-monitor set up and boost your productivity. One of the HDMI™ ports can output resolutionsup to 4K, while the other can output resolutions up to 2K.
Extend or Mirror
Connect up to 2 external monitors (driver required). Your laptop display, plus the 2 external monitors, gives you a total of 3 monitors.100W Power Delivery
Pass-Through
Power and charge your laptop, while powering all devicesconnected to your laptop and the docking station with a
single power adapter (not included)
SD™/microSD™ Card Reader
3.5 mm Combo Audio Jack
RJ45 Gigabit Ethernet
Cable Storage With Dual Openings
Keep your workspace organized with the double-sided cable storage compartment, giving you the exibility to place the cable anyway you like.Connect Your Devices
Features three SuperSpeed USB™ 3.1 Gen 1 Type-Aports, o ering up to 5 Gbps data transfer speed
when using your USB™ peripherals.
Heat-Eliminating Design
Transform your laptop into a workstation that supports all of your peripherals without the worry of overheating.Anti-Theft Protection
Equipped with a security slot to protect against theft,making it perfect for use in business organizations.
Universal Compatibility
Compatible with Thunderbolt™ 3, the universalUSB-C® connection works with Windows®, macOS®,
and Che OS™.
Physical Specifications
Specifications
Ports & interfaces
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity*
2
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate e
Yes
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated*
Yes
Compatible memory cards
MicroSD (TransFlash), SD
HD type
4K Ultra HD
Number of displays supported
2
Maximum refresh rate
30 Hz
Product colour*
Black, Grey
Hub interfaces
3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Housing material
Aluminium
Country of origin
Taiwan
Power
Power supply type
USB
Output voltage
20 V
Output current
0.9 A
Power consumption (typical)
4.5 W
Software
Windows operating systems supported
Windows 10
Mac operating systems supported
Mac OS X 10.11 El Capitan
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Weight & dimensions
Width
82.5 mm
Depth
350.2 mm
Height
22 mm
Weight
307 g
Packaging data
Quantity per pack
1 pc(s)
Package width
88.3 mm
Package depth
358 mm
Package height
28 mm
Package weight
405 g
Packaging content
Cables included
USB Type-C
Quick start guide
Yes
Manual
Yes
Packaging content
1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG)
Technical details
Warranty period
2 year(s)
Other features
Cable length
0.45 m
Maximum operating temperature
40 °C
Additional Information
| EAN/UPC | 4712795086041 |
|---|---|
| MPN | JCD542-N |
| BRAND | J5CREATE |
