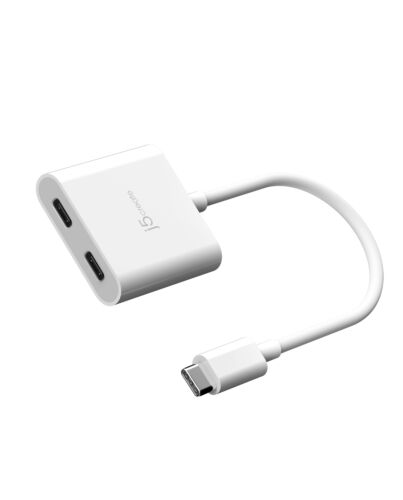

j5create USB-C to Dual USB-C with Video or Power Delivery
£27.06
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected. The 4K240 Hz USB-C® port supports Extended, and Mirrored display es. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.
Key Features
- Supports USB-C® video resolution up to 4K @ 240 Hz for VR/AR glasses and USB-C® monitor
- Designed specifically for AR glasses or high-resolution monitor, features a USB-C® port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience
- Charge while playing! Equipped with a USB-C® charging input supporting up to PD 100W
- Suitable for iPhone® 15, Android™ phone or handheld game console like Nintendo Switch® and Steam Deck™
- Plug-and-play, no driver installation is required
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Power source
USB
Cable length*
0.1 m
Connector 1*
USB Type-C
Connector 2*
USB Type-C
Connector 1 gender*
Male
Connector 2 gender*
Female
Maximum resolution
3840 x 2160 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video es
1080p, 1440p, 2160p
Maximum refresh rate
240 Hz
Refresh rate at maximum resolution
30 Hz
Voltage rating
20 V
Product colour
White
Jacket material
Acrylonitrile butadiene styrene (ABS), Plastic
Cable type
Round cable
Country of origin
Taiwan
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
CheOS
Operational conditions
Operating temperature (T-T)
-1 - 41 °C
Storage temperature (T-T)
-17 - 68 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Certificates
Compliance certificates
CE, REACH, RoHS
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Weight
23.2 g
Width
42 mm
Depth
42 mm
Height
11 mm
Packaging data
Package width
145 mm
Package depth
95 mm
Package height
25 mm
Package weight
55.5 g
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Shipping (inner) case net weight
400 g
Export Control Classification Number (ECCN)
EAR99
Warranty period
2 year(s)
Master (outer) case width
225 mm
Master (outer) case length
321 mm
Master (outer) case height
180 mm
Master (outer) case gross weight
2.5 kg
Products per master (outer) case
20 pc(s)
Master (outer) case GTIN (EAN/UPC)
24712795088773
Shipping (inner) case width
10.5 cm
Shipping (inner) case length
15 cm
Shipping (inner) case height
16 cm
Products per shipping (inner) case
5 pc(s)
Additional Information
| EAN/UPC | 4712795088779 |
|---|---|
| MPN | JCA164-N |
| BRAND | J5CREATE |
