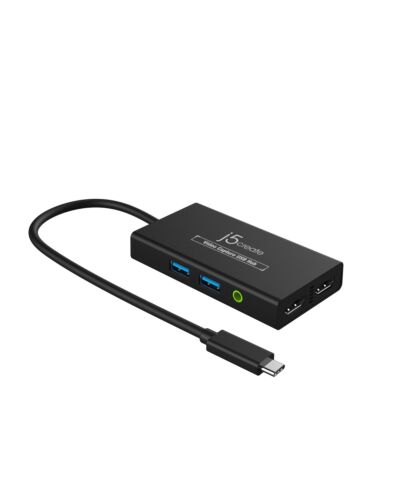

j5create JVA01-N Video Capture USB™ Hub
£33.55
j5create JVA01-N Video Capture USB™ Hub, Black, USB 3.2 Gen 1 (3.1 Gen 1), 1920 x 1080 pixels, Digital camera, Game console, PC, Plastic, 0.3 m
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.
Key Features
- "UVC Capture
- HDMI™ to USB-C® with 60W Power Delivery
- Power Delivery 3.0 lets you stream live without interruption
- Ultra-low latency stream through USB-C® 3.2 connection
- 3.5 mm audio jack allows you to connect headphones or speakers
- 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
- UVC standard - No driver installation required
- Field production made easy with its compact size"
- "USB-C® Hub with 4K HDMI™
- Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
- USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
- 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
- No driver installation required for Windows® or macOS®"
Features
A unique USB-C® hub with video capture function, perfect for mobile live streaming f your phone or laptop
1080p video capture with ultra-low latency
Easily add an HDMI™ display with resolutions up to 4K
2 x SuperSpeed USB™ Type-A 5Gbps ports to connect additional peripherals
Supports PD Pass-Through charging up to 60W, so you can stream live without interruption
3.5 mm audio jack allows you to connect headphones or speakers
Perfect Gadget For Your Live Streaming
Portable Dock for USB-C® Game Consoles
Compliant with UVC standard. No driver installation required for Windows®, macOS®, or Android™.
Stream your online potions or live shows easily with the JVA01
Perfect for on-the-go
Its compact and portable size make it a great tool for field production
Specifications
Performance
Product colour*
Black
Internal*
No
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
1920 x 1080 pixels
Memory card slot(s)
No
Plug and Play
Yes
Capturing f
Digital camera, Game console, PC
Housing material
Plastic
High Dynamic Range (HDR) supported
No
Cable length
0.3 m
Country of origin
Taiwan
Compatible products
Available USB-C® port that supports DisplayPort™ alt e and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended).
Video
Analog signal format system*
Not supported
Supported resolutions
HDMI™ In: 3840 x 2160
USB-C® display: 3840 x 2160
Capture/Record: 1920 x 1080
Maximum refresh rate
30 Hz
Ports & interfaces
USB port*
Yes
USB connector type
USB Type-A
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
2
HDMI ports quantity
2
HDMI in
1
Number of HDMI outputs
1
Headphone outputs
1
Power
Power supply type*
USB
Input voltage
20 V
Input current
3 A
Output voltage
20 V
Power
Output current
3 A
Software
Windows operating systems supported
Yes
Mac compatibility
Yes
Mac operating systems supported
Yes
Other operating systems supported
Android
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 85%
Technical details
Warranty period
2 year(s)
Weight & dimensions
Width
50.5 mm
Depth
96.5 mm
Height
15 mm
Weight
69 g
Packaging data
Package weight
148.2 g
Package height
22.5 mm
Package width
193 mm
Package depth
125 mm
Package type
Box
Packaging content
Quick installation guide
Yes
Manual
Yes
Quantity
1
Additional Information
| EAN/UPC | 4712795086454 |
|---|---|
| MPN | JVA01-N |
| BRAND | J5CREATE |
