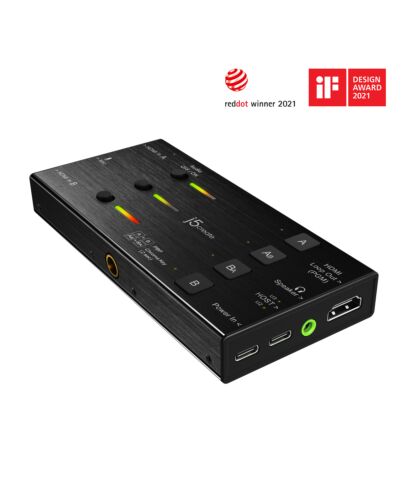

j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and
£82.93
j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black, Black, USB 3.2 Gen 1 (3.1 Gen 1), 1920 x 1080 pixels, USB, Digital camera, Game console, PC, 16:9
In stock
Product Details
Description
The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video f two HDMI™ sources simultaneously and customize the content in time. Whether you’re live streaming or recording, there are six screen e configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Cha Key application allowing users to drop in a new background image.
With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly f your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).
The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.
With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly f your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).
The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.
Key Features
- Dual HDMI™ input for capturing 2 channels
- Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
- Uncompressed 1080p @ 60 FPS capture via HDMI™ 1.3a
- Supports 1080p 60 HDMI™ loop out (PGM out)
- Six screen e configurations with PIP (Picture in Picture) and PBP (Picture by Picture)
- Easily switch between different screen es and adjust transition effects with the built-in buttons
- Directly activate Cha Key features through the built-in controls
- Adjustable segmented window arrangements in PBP (Picture by Picture) e. Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
- 3 individual audio mixer on/off switches supported. 3 channel volume indicators. Easy DSLR attachment with 2 cold shoe adapters (included). Supports USB-C™ Power Delivery 3.0
- UVC standard, plug & play. LED activity indicator
- • HDMI™ IN
- • USB™ Link
- • Volume Unit
Features
2 HDMI™ to USB-C™
Dual HDMI™ input gives you the ability to capture uncompressed 1080p video content f 2 channels simultaneously
60W Power Delivery 3.0
Keep your USB-C™ enabled laptop/phone charged while broadcastingHigh-Definition Video
Supports uncompressed 1080p 60 capture and 1080p 60 HDMI™ loopout (PGM out)Driver-Free Installation
Standard UVC (Universal Video Class) protocol allows the device to work automatically with the system-supplied driver.Perfect for live streaming, broadcasting, and video conferencing
In addition to cold shoe adapters for DSLR, the JVA06 features a flexible audio connection via HDMI™ or analog 3.5 mm ports so you can record audio directly f game consoles, computers, or output to speakers/mixers.
Built-in Audio Mixer
3 individual mixable audio channels and volume indicators simplify recording and streaming for any occasion.Seamless Integration
The JVA06 is compatible across a wide range of streaming software, devices, and platforms including OBS™, XSplit®, CameraFi™, QuickTime® and more.*For more information, please see the list in the Compatibility tab.
Easy DSLR attachment with 2 cold shoes embedded
6 Screen e Configurations
Easily adjust the display settings with built-in buttons, enabling PIP (Picture-in-Picture), as well as PBP (Picture-by-Picture) e
Specifications
Performance
Product colour*
Black
Internal*
No
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
1920 x 1080 pixels
LED indicators
USB
Capturing f
Digital camera, Game console, PC
Supported aspect ratios
16:9
Housing material
Aluminium
Cable length
0.6 m
Country of origin
Taiwan
Video
Analog signal format system*
Not supported
Supported resolutions
640 x 480
720 x 480
720 x 576
800 x 600
1280 x 720
1024 x 768
1360 x 768
1280 x 800
1152 x 864
1440 x 900
1280 x 1024
1400 x 1050
1680 x 1050
1600 x 1200
1920 x 1080
Maximum frame rate
60 fps
Supported video es
1080p
Audio
Supported audio channels
2
Ports & interfaces
USB port*
Yes
USB connector type
USB Type-A, USB Type-C
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
2
HDMI ports quantity
3
HDMI in
2
Number of HDMI outputs
1
Power
Power supply type*
USB
Output voltage
20 V
Output current
0.9 A
Software
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Yes
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes
Linux operating systems supported
Yes
Bundled software
Recommended software: OBS™
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 85%
Technical details
Warranty period
2 year(s)
Weight & dimensions
Width
134.6 mm
Depth
63.7 mm
Height
18.4 mm
Weight
175 g
Packaging data
Package weight
415 g
Package height
70 mm
Package width
155 mm
Package depth
95 mm
Package type
Box
Packaging content
Cables included
HDMI, USB Type-C, USB Type-C to USB Type-A
Quick installation guide
Yes
Manual
Yes
Quantity
1
Packaging content
1 x JVA06 Dual HDMI™ Video Capture, 1 x Quick Installation Guide, 1 x USBxC™ 2.0 to USBxC™ cable, 1 x USBxC™ 3.0 to USB™ TypexA cable, 1 x 39.4 in./100 cm HDMI™ cable
