TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-e Black
£29.33
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

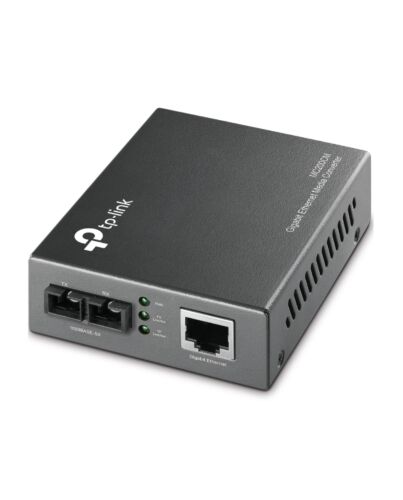

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-e fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-e fiber up to 1,800 feet (550 meters).
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-e fiber up to 1,800 feet (550 meters).
Key Features
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer e
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 1,800 feet (550m)
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Cable types supported
Cat5, Cat5e
Performance
Maximum transfer distance*
550 m
Wavelength*
850 nm
Fiber e structure
Multi-e
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Features
Internal*
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Ports & interfaces
Fiber optic connector*
SC
Power
Power consumption (max)
1.66 W
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Manual
Yes
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002611046 |
|---|---|
| MPN | MC200CM |
| BRAND | SPECIALS |
