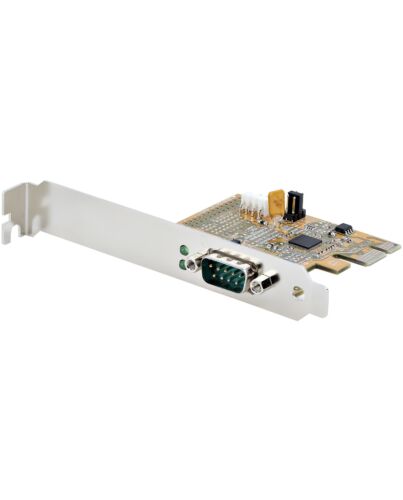

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux
£43.46
StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux, PCIe, Serial, Full-height / Low-profile, PCIe 2.0, RS-232, Yellow
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The 1-Port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The 1-Port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- PCIE TO SERIAL: Connect a serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART. Monitor activity with the built-in LED status lights on the PCI express DB9 card
- DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile bracket is included
- APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 port accepts screw locking serial cables
- PC SERIAL CARD SPECS: 16C1050 UART / Max Baud 921.6 Kbps / 256 Byte FIFO / COM Retention / Supports Windows and Linux / Asix AX99100 Chipset / Odd/Even/Mark/Space/None Parity es / 5/6/7/8/9 Data Bits / PCIe 2.0 x1 / Low-profile Bracket Included
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
Serial
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCIe 2.0
Serial ports quantity
1
Serial interface type
RS-232
Design
Internal*
Yes
Product colour
Yellow
LED indicators
Activity
Features
Chipset
ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate
921.6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8, 9
Flow control support
Yes
Parity bit
Even, Mark, No, Odd, Space
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
System requirements
Server operating systems supported
Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates
CE, RoHS
Weight & dimensions
Width
65 mm
Depth
67 mm
Height
18 mm
Weight
42 g
Packaging data
Mounting brackets included
Yes
Quick installation guide
Yes
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
200 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
50 pc(s)
Master (outer) case width
530 mm
Master (outer) case length
440 mm
Master (outer) case height
340 mm
Other features
Material
Steel
Additional Information
| EAN/UPC | 0065030894777 |
|---|---|
| MPN | 11050-PC-SERIAL-CARD |
