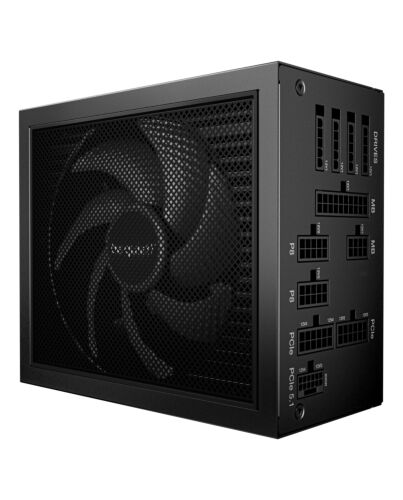

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
£183.24
be quiet! Dark Power 14 1000 W - 80 Plus Titanium, 1000 W, 100 - 240 V, 1100 W, 50/60 Hz, 10 A, 5 A
In stock
Product Details
Description
No compise silence and performance
Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive e.
Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive e.
Key Features
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Active and semi-passive cooling can be selected with the push of a button
- Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
- Button to switch between single and multi-rail operation
- Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities
- ular cable management for maximum convenience
- Product conception, design and quality control in Germany
Specifications
Power
Total power*
1000 W
Peak power
1100 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
10 A
Maximum input current (@220V)
5 A
Power factor
0.98
Number of +12V rail(s)
4
Combined power (+3.3V)
120 W
Combined power (+12V)
996 W
Combined power (+5V)
120 W
Max output current (+3.3V)
25 A
Max output current (+12V1)
33 A
Max output current (+12V2)
33 A
Max output current (+12V3)
40 A
Max output current (+12V4)
40 A
Max output current (+5V)
24 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3 A
Hold time
20.1 ms
Efficiency
93.8%
Power protection features
Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
13
SATA power cable length
600,750,900,1050 mm
Number of SATA power cables
4
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
900,1050 mm
EPS power connector (8-pin)
Yes
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12-pin)
1
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
70 cm
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Titanium
Purpose*
PC
Performance
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Noise level
18.2 dB
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan speed
0 - 2100 RPM
On/off switch
Yes
On/off fan switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Certificates
Compliance certificates
CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Weight & dimensions
Width
150 mm
Depth
175 mm
Height
86 mm
Weight
2.2 kg
Packaging data
Manual
Yes
Manual languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package width
230 mm
Package depth
126 mm
Package height
355 mm
Package weight
3.5 kg
Technical details
Sustainability certificates
ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length
52.8 cm
Shipping (inner) case width
36.8 cm
Shipping (inner) case height
26 cm
Shipping (inner) case net weight
19.3 kg
Products per shipping (inner) case
4 pc(s)
Other features
Screws included
Yes
Cable ties included
Yes
Additional Information
| EAN/UPC | 4260052192023 |
|---|---|
| MPN | BP020EU |
| BRAND | BEQUIET |
