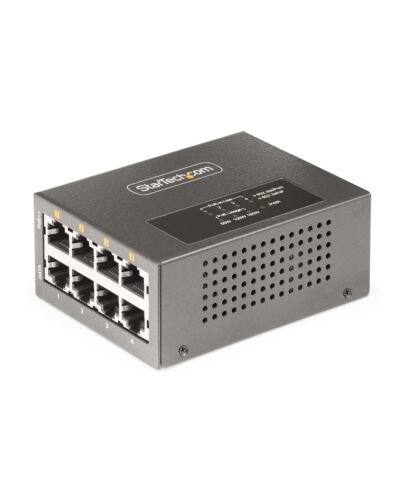

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3
£304.01
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, 10,100,1000,2500,5000 Mbit/s, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, Cat5e, Cat6, Cat6a, Microsemi - PD69208T4, Microsemi - PD69200R, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector
This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ).
Versatile PoE Injector
Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.
Experience streamlined cable management with all network cables routed f one side of the unit for a clean and organized setup.
Flexible Power Options
Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter.
The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures.
Increased Network Speeds
The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.
The StarTech.com Advantage
This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ).
Versatile PoE Injector
Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.
Experience streamlined cable management with all network cables routed f one side of the unit for a clean and organized setup.
Flexible Power Options
Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter.
The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures.
Increased Network Speeds
The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.
The StarTech.com Advantage
Key Features
- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection
- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power es available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment
- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers late the input/output data, and a power circuit prevents interference between ports
- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE e per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
Specifications
Network
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500,5000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
Yes
Cable types supported
Cat5e, Cat6, Cat6a
Chipset
Microsemi - PD69208T4, Microsemi - PD69200R
Features
Product colour
Grey
Housing material
Metal
Wall mountable
Yes
Maximum operating distance
100 m
LED indicators
Status
Jumbo frames support
Yes
Jumbo frames
9000
Ports & interfaces
Ethernet LAN (RJ-45) ports*
8
RJ-45 input ports
4
RJ-45 output ports
4
DC-in jack
Yes
Power
AC adapter input voltage
100 - 240 V
Input current
2.5 A
AC adapter output voltage
54 V
Output current
3.3 A
Total Power over Ethernet (PoE) budget
160 W
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), UKCA
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
70 mm
Depth
94 mm
Height
39 mm
Weight
278 g
Packaging content
Number of products included
1 pc(s)
AC adapter included
Yes
Quick installation guide
Yes
Packaging data
Package width
170 mm
Package depth
300 mm
Package height
90 mm
Package weight
1.7 kg
Logistics data
Master (outer) case width
475 mm
Master (outer) case length
370 mm
Master (outer) case height
325 mm
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 0065030900928 |
|---|---|
| MPN | AS445C-POE-INJECTOR |
