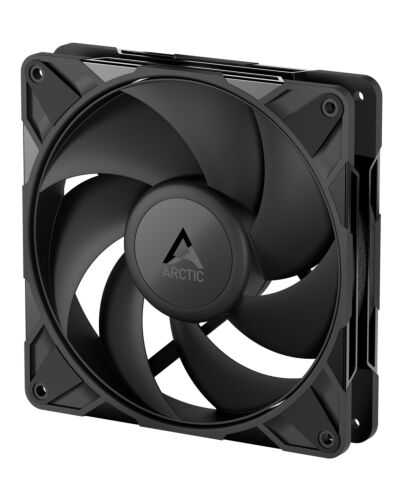

ARCTIC P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation

£8.21

ARCTIC P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation, Fan, 14 cm, 400 RPM, 2500 RPM, 186 m³/h, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Reasons To Buy

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

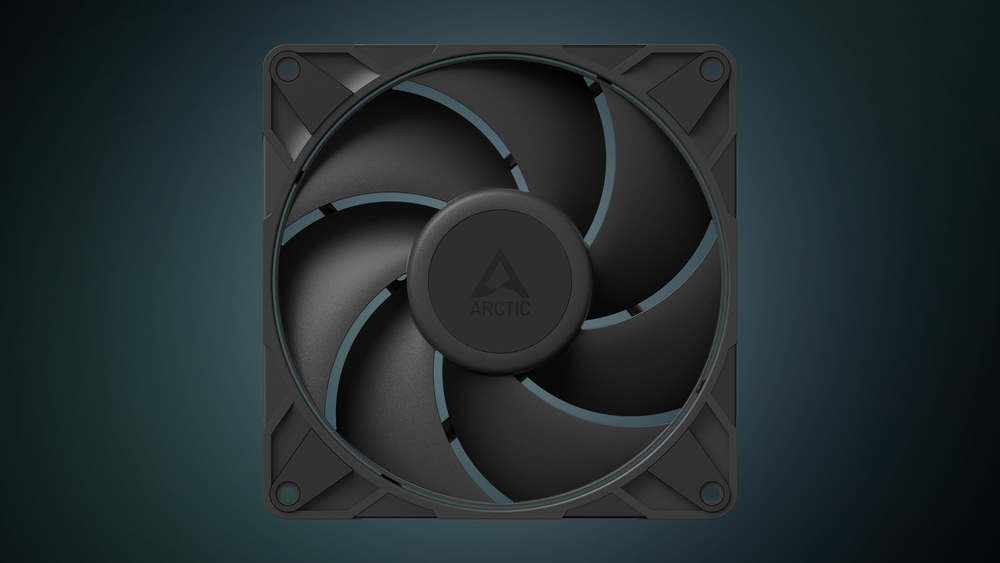

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

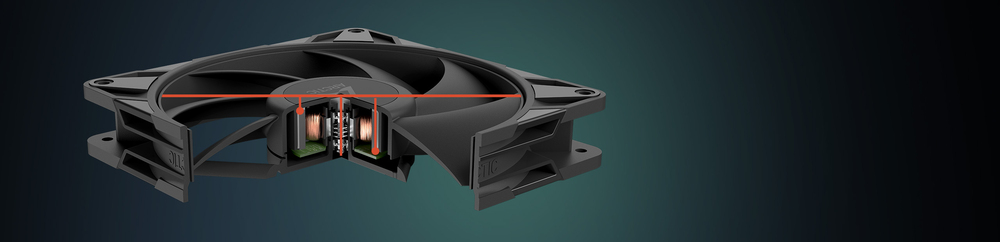

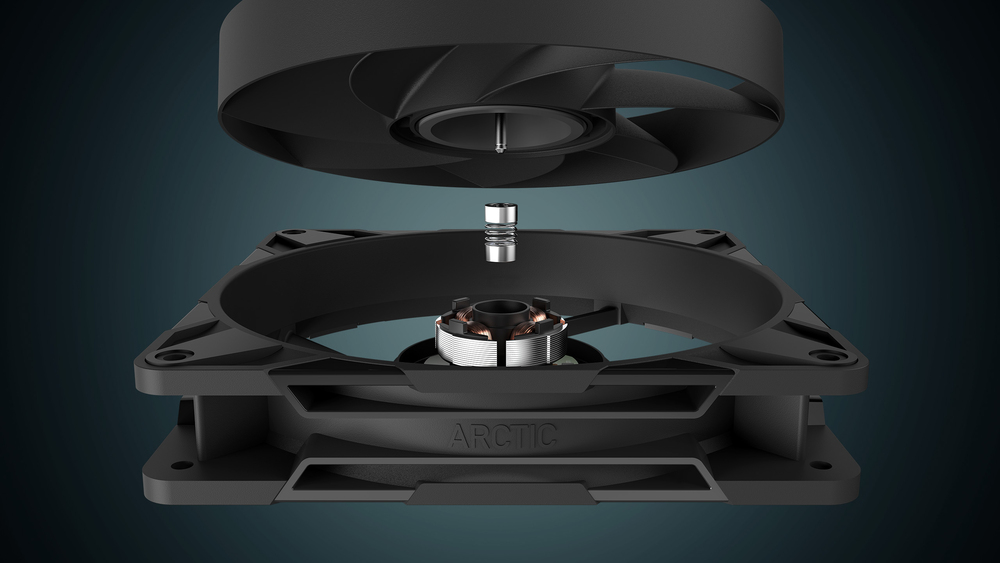

Optimized Bearing-Shaft Design (DBB)

A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.

Automated Two-Plane Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

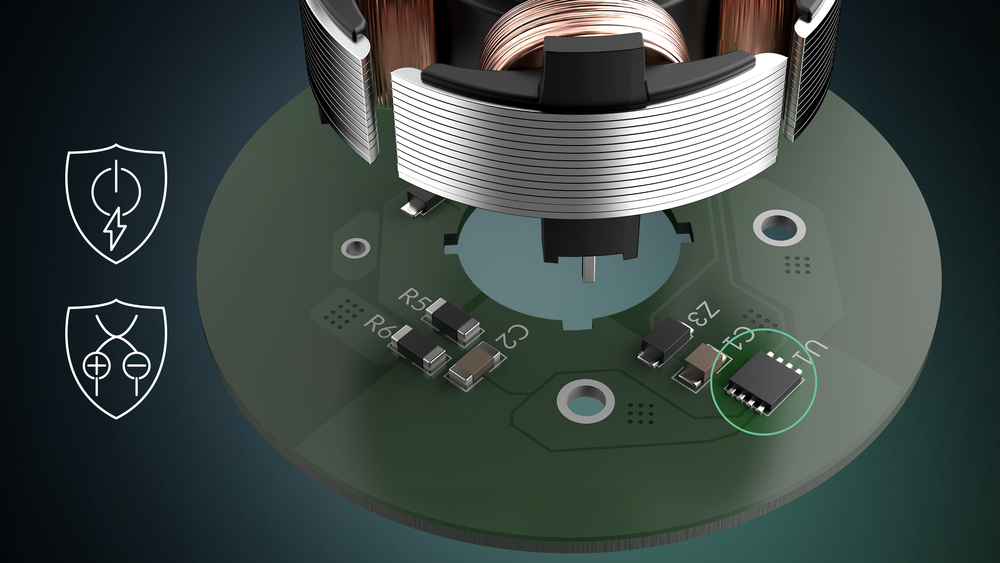

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

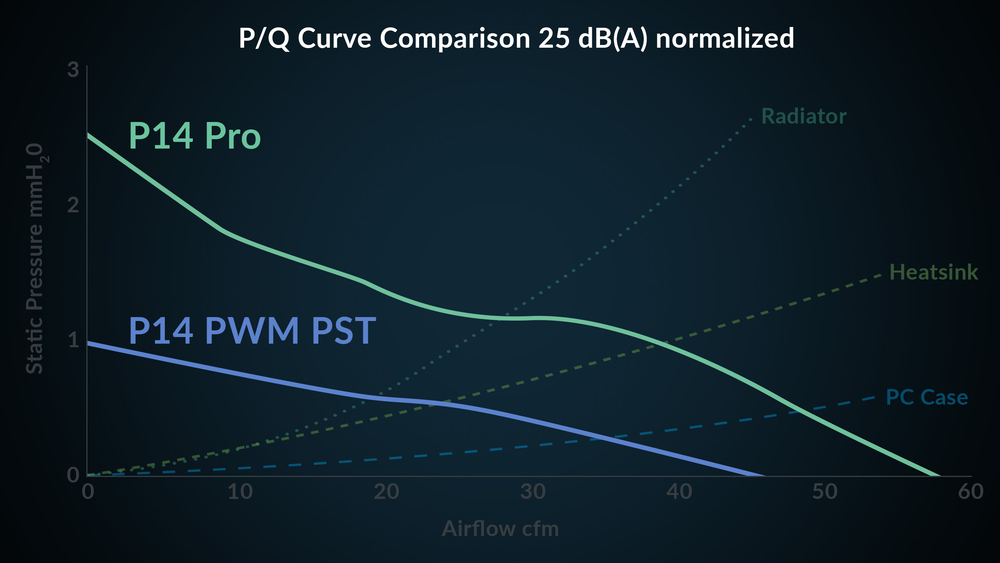

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

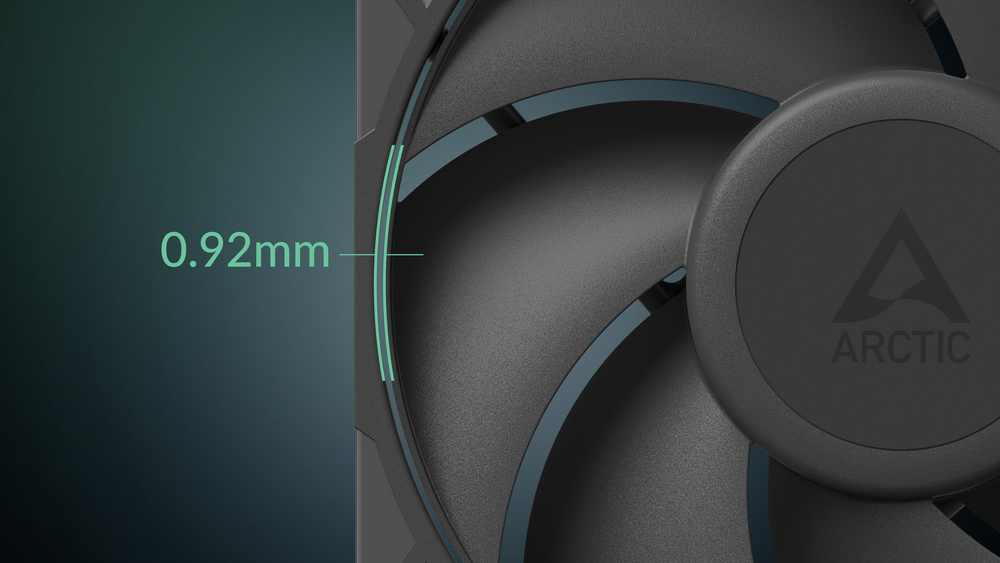

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

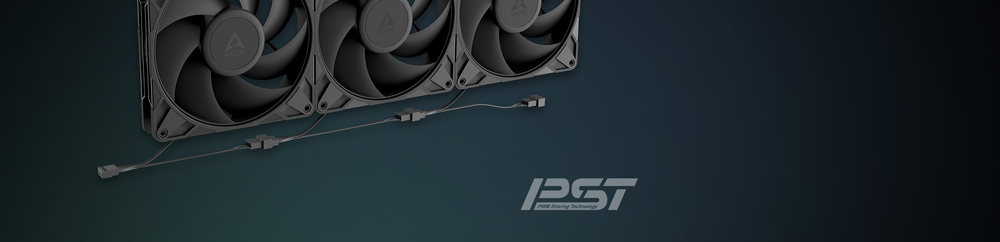

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

14 cm

Rotational speed (min)

400 RPM

Rotational speed (max)

2500 RPM

Maximum airflow

110 cfm

Airflow

186 m³/h

Maximum air pressure

5.2 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Dual ball bearing

Quantity per pack

1 pc(s)

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Fan connector

4-pin + 4-pin

Power

Rated voltage

12 V

Starting voltage

5 V

Rated current

0.35 A

Weight & dimensions

Fan dimensions (W x D x H)

140 x 140 x 27 mm

Fan weight

242 g

Cable length

0.48 m

Package width

145 mm

Package depth

145 mm

Package height

32 mm

Package weight

294 g

Packaging content

Screws included

Yes

Number of screws

Additional Information

More Information
EAN/UPC	4895265000409
MPN	ACFAN00316A
