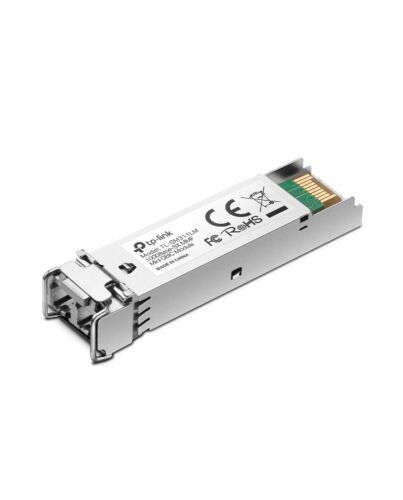

TP-Link SFP 1000BASE-SX LC MiniGBIC Mm
£16.76
TP-Link SFP 1000BASE-SX LC MiniGBIC Mm, Fiber optic, 1250 Mbit/s, mini-GBIC/SFP, LC (UPC), 50/125,62.5/125 µm, 550 m
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does
The TL-SM311 series Fiber ule Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber ules according to the demand in order to lower cost.
The TL-SM311 series Fiber ule Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber ules according to the demand in order to lower cost.
Key Features
- Multi-e MiniGBIC ule
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
1250 Mbit/s
Interface type*
mini-GBIC/SFP
Single-e fiber (SMF) supported
No
Multi-e fiber (MMF) supported
Yes
Fiber optic connector
LC (UPC)
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Maximum transfer distance
550 m
Wavelength
850 nm
Networking standards
IEEE 802.3z
Features
Product colour
Metallic
Power
Input voltage
3.3 V
Certificates
Compliance certificates
RoHS
Certification
FCC, CE
Operational conditions
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
55.4 mm
Depth
13.7 mm
Height
12.9 mm
Packaging content
Quantity per pack
1 pc(s)
Packaging data
User guide
Yes
Package width
38 mm
Package depth
207 mm
Package height
38 mm
Package weight
110 g
Logistics data
Harmonized System (HS) code
85369010
Additional Information
| EAN/UPC | 1210002619295 |
|---|---|
| MPN | SM311LM |
