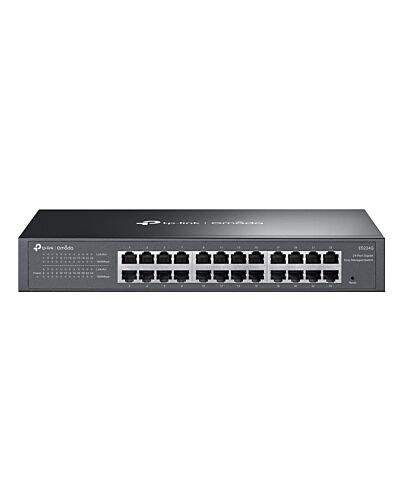

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
£118.28
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Key Features
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Unified static configuration
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
24
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Network
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN
Number of VLANs
32
Data transmission
Switching capacity*
48 Gbit/s
Forwarding rate
35.7 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
4 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Rack mounting*
Yes
Product colour
Black
Performance
Firmware upgradeable
Yes
Fanless
Yes
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Surge protection
Yes
Surge protection voltage
6 kV
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
294 mm
Depth
140 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
No
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 1210002600712 |
|---|---|
| MPN | ES224G |
