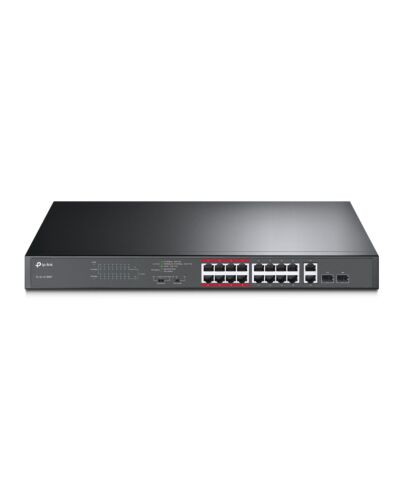

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
£134.10
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend e, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority e guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend e, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority e guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Key Features
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend e specially designed for surveillance system
- Priority e for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed
Specifications
Management features
Switch type*
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
16
Gigabit Ethernet (copper) ports quantity
2
Combo SFP ports quantity
2
Network
Networking standards*
IEEE 802.3af, IEEE 802.3at
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support
Yes
Auto MDI/MDI-X
Yes
Data transmission
Switching capacity*
7.2 Gbit/s
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB
Security
MAC address filtering
Yes
Design
Rack mounting*
Yes
Stackable*
No
Product colour
Black
LED indicators
LAN, PoE, Status
Number of fans
2 fan(s)
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
18.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
192 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
741.15 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
LAN (RJ-45)
Quick start guide
Yes
User guide
Yes
Manual
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002617154 |
|---|---|
| MPN | TL-SL1218MP |
