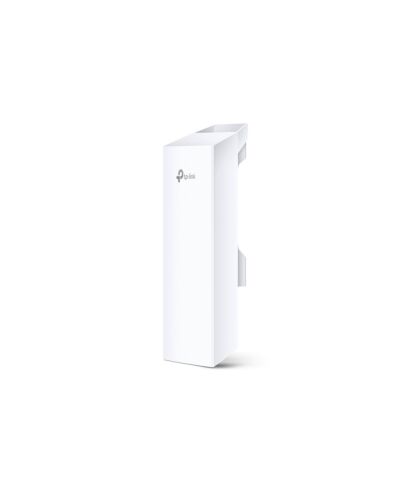

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 300 Mbit/s White Power over Ethernet (PoE)
£38.17
TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor Wireless Products' target='_self' >wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Key Features
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
Features
2.4 GHz*
Yes
5 GHz*
No
Maximum data transfer rate*
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Frequency band
2.4 - 2.483 GHz
Bandwidth
2.4 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
MIMO type
Multi User MIMO
Maximum outdoor range
5000 m
Receiver sensitivity
802.11b:
11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
-802.11g:
54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
802.11n:
MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes
Protocols
Management protocols
TDMA
Management features
Web-based management
Yes
Management platform
Pharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.8 A
Output voltage
24 V
Output current
1 A
Power consumption (max)
10.5 W
Design
Placement*
Wall
Product colour*
White
Design
International Protection (IP) code
IPX5
Reset button
Yes
LED indicators
Yes
Antenna
Antenna type*
Internal
Antenna features
Integrated antenna
Antennas quantity
1
Antenna gain level (max)
9 dBi
Performance
Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
560 MHz
Flash memory
8 MB
Internal memory
64 MB
Compatible operating systems
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certificates
Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS, IPX5
Weight & dimensions
Width
224 mm
Depth
79 mm
Height
60 mm
Packaging content
Cables included
AC
Mounting kit
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002611435 |
|---|---|
| MPN | CPE210 |
