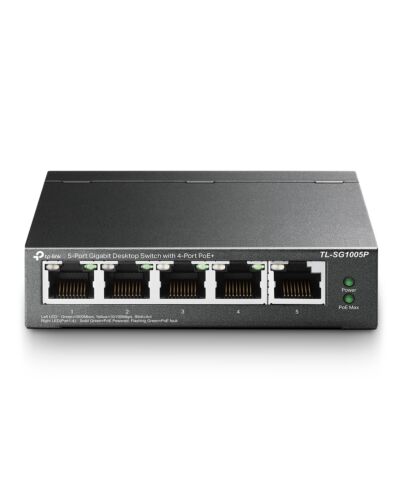

TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
£45.06
TP-Link TL-SG1005P, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- 5 10/100/1000Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 65W for all PoE ports
- Requires no configuration and installation
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
5
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
MAC address auto-aging supported
Yes
VLAN support
Yes
Data transmission
Switching capacity*
10 Gbit/s
MAC address table*
2000 entries
Store-and-forward
Yes
Security
IGMP snooping
Yes
Design
Rack mounting*
No
Product colour
Black
LED indicators
Yes
Power
Power supply included*
Yes
AC input voltage
100 - 220 V
Power
AC input frequency
50 Hz
Power consumption (max)
63.31 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
56 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging content
Cables included
AC
Quick start guide
Yes
Manual
Yes
Packaging data
Package type
Box
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002616614 |
|---|---|
| MPN | TL-SG1005P |
