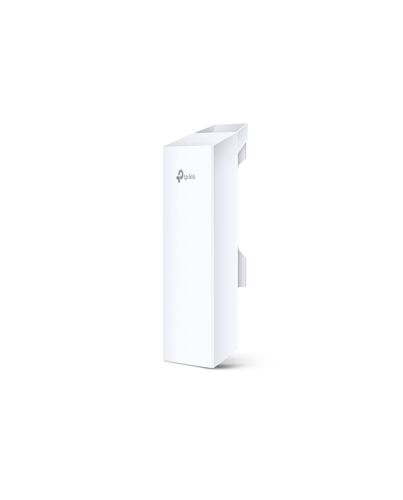

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
£50.17
TP-Link CPE510, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor Wireless Products' target='_self' >wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging f -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging f -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Key Features
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power f 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation es
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
Features
Maximum data transfer rate*
300 Mbit/s
Wi-Fi data rate (max)
300 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
5.15 - 5.85 GHz
Bandwidth
5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11n
Maximum outdoor range
15000 m
Receiver sensitivity
802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes
Protocols
Management protocols
TDMA
Management features
Web-based management
Yes
Management platform
Pharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
WAN connection
Ethernet (RJ-45)
Power
Power over Ethernet (PoE)*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.8 A
Power consumption (typical)
13 W
Design
Product colour*
White
Reset button
Yes
Design
LED indicators
Yes
Internal
No
Antenna
Antenna features
Integrated antenna
Antennas quantity
1
Antenna gain level (max)
13 dBi
Performance
Built-in processor
Yes
Flash memory
8 MB
Internal memory
64 MB
Compatible operating systems
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certificates
Certification
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
RoHS
Weight & dimensions
Width
224 mm
Depth
75 mm
Height
60 mm
Packaging content
Cables included
AC
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002611473 |
|---|---|
| MPN | CPE510 |
