  • ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

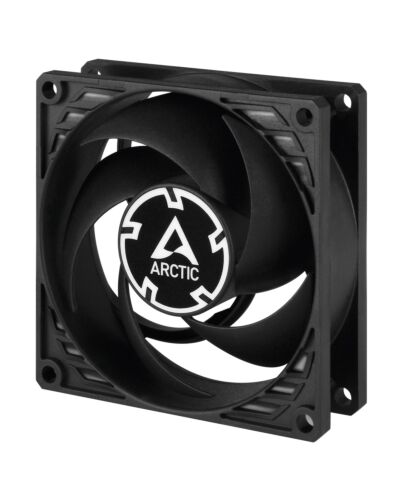

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

Components

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

Be the first to review this product
£5.56
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation, Fan, 8 cm, 200 RPM, 3000 RPM, 0.3 sone, 40.3 m³/h
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Reasons To Buy

Optimised for Static Pressure

IMAGE-NOT-AVAILABLE

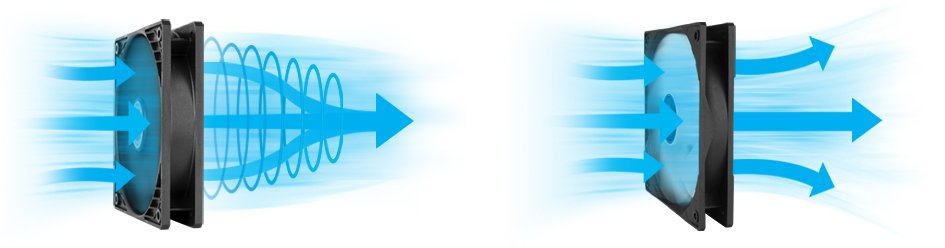

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

For Continuous Operation

IMAGE-NOT-AVAILABLE

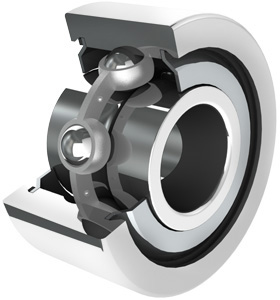

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration

IMAGE-NOT-AVAILABLE
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.

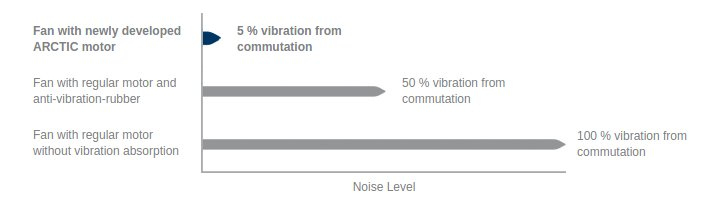

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

IMAGE-NOT-AVAILABLE

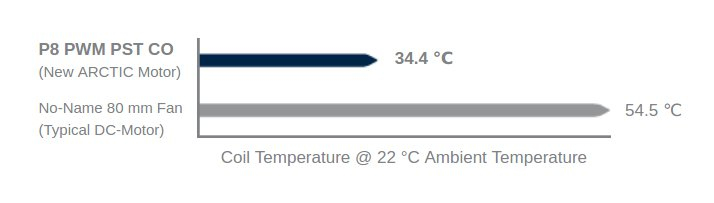

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

200 to 3000 RPM regulated via PWM

IMAGE-NOT-AVAILABLE

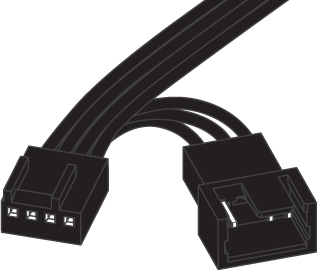

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

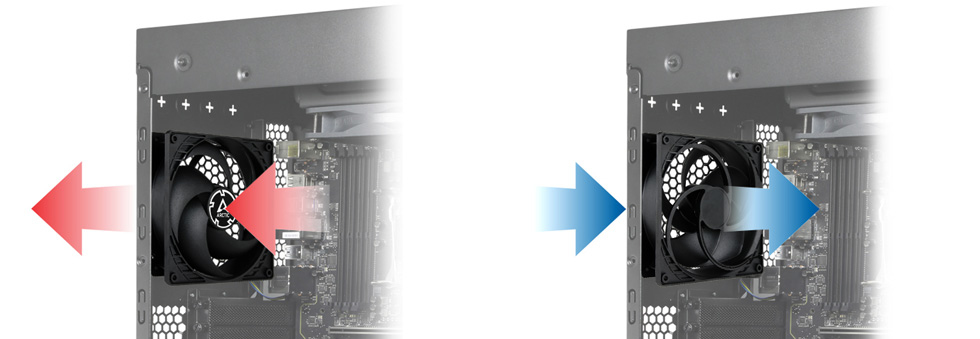

Two Way Installation

IMAGE-NOT-AVAILABLE
Push warm air out of the case
Pull cool air into your case

Specifications

Performance

Suitable location*
Computer case
Type*
Fan
Fan diameter
8 cm
Supported processor sockets
Not supported
Compatible processor series
Not supported
Rotational speed (min)
200 RPM
Rotational speed (max)
3000 RPM
Noise level
0.3 sone
Maximum airflow
23.4 cfm
Airflow
40.3 m³/h
Maximum air pressure
1.9 mmH2O
Pulse-width modulation (PWM) support
Yes
Bearing type
Fluid Dynamic Bearing (FDB)

Design

Product colour*
Black
Number of fans
1 fan(s)
Number of fan blades
5
Fan connector
4-pin

Power

Voltage
12 V

Power

Rated current
0.09 A

Weight & dimensions

Width
80 mm
Depth
25 mm
Height
80 mm
Weight
78.5 g
Package width
82.5 mm
Package depth
26 mm
Package height
82.5 mm
Package weight
97 g

Packaging content

Package type
Box
Screws included
Yes
Number of screws
4
Manual
Yes

Other features

Mounting hole pattern (W x D)
71.5 x 71.5 mm
Country of origin
China

Additional Information

More Information
EAN/UPC 4895213702041
MPN ACFAN00151A
BRAND ARCTIC
