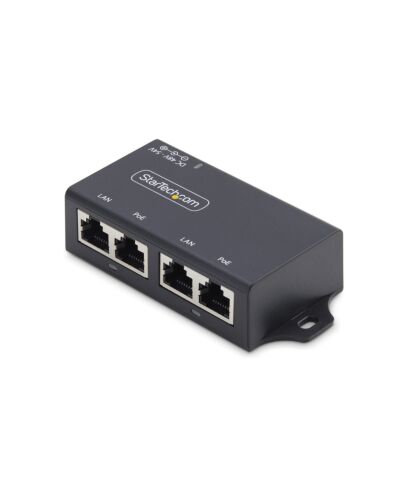

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet
£62.51
StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet, Gigabit Ethernet, Fast Ethernet, 10,1000,100 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at, IC Plus - IP802AR, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Supply power and data to two PoE devices over standard Ethernet cabling
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
Key Features
- TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
- NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
- HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
- APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
- TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch (82x25x46mm)
Specifications
Network
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates
10,1000,100 Mbit/s
Cabling technology
10/100/1000
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Auto MDI/MDI-X
Yes
Web-based management
No
Chipset
IC Plus - IP802AR
Features
Product colour
Black
Housing material
Plastic
Wall mountable
Yes
Surge protection
Yes
Maximum operating distance
100 m
LED indicators
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Auto-negotiation
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
RJ-45 input ports
2
RJ-45 output ports
2
DC-in jack
Yes
Power
Output power
30 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
AC adapter output voltage
52 V
Output current
1.25 A
Power
Power consumption (max)
65 W
Total Power over Ethernet (PoE) budget
30 W
Surge protection voltage
2 kV
Power plug type
Type M
Suitable for use in country/location
Europe, United Kingdom
Certificates
Compliance certificates
RoHS
Operational conditions
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-10 - 70 °C
Weight & dimensions
Width
46 mm
Depth
102 mm
Height
25 mm
Weight
60 g
Packaging content
Quick installation guide
Yes
Packaging data
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
105 g
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
420 mm
Master (outer) case height
320 mm
Products per master (outer) case
40 pc(s)
Additional Information
| EAN/UPC | 0065030911313 |
|---|---|
| MPN | AF221CE-POE-INJECTOR |
| BRAND | STARTECH |
