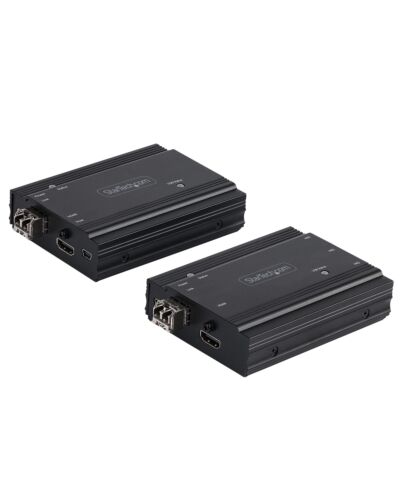

StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX)
£596.36
StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX), Transmitter & receiver, Wired, 500 m, 3840 x 2160 pixels, 60 Hz, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
- 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
- DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
- SPECS: HDMI 2.0 Fiber Optic KVM Extender / 3x USB 1.1 HID / OS Independent / EDID Passthrough / Supports MM or SM SFP+ / 2x 10G Multimode SFP+ modules inc. / LC Connectors / 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range / 2 year Warranty
- EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
500 m
Rack mounting
No
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
On Screen Display (OSD)
No
Product colour
Black
Material
Metal
LED indicators
Power, Status
Transmitter
Transmitter video port type
HDMI
Number of displays supported
1
Receiver
Receiver local video port type
HDMI
Ports & interfaces
USB 1.1 ports quantity
3
Power
AC input voltage
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
10 W
Power consumption (receiver) (max)
10 W
Weight & dimensions
Transmitter width
7.5 cm
Transmitter depth
10 cm
Transmitter height
2.8 cm
Transmitter weight
450 g
Weight & dimensions
Receiver width
7.5 cm
Receiver depth
10 cm
Receiver height
2.8 cm
Receiver weight
450 g
Packaging data
Package width
180 mm
Package depth
310 mm
Package height
75 mm
Package weight
140 g
Packaging content
AC adapter included
Yes
Cables included
Mini-USB
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Other features
Compliance certificates
CE, RoHS
Technical details
Weight
500 g
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
405 mm
Master (outer) case length
330 mm
Master (outer) case height
265 mm
Products per master (outer) case
6 pc(s)
Additional Information
| EAN/UPC | 0065030887694 |
|---|---|
| MPN | SV565FXHD4KU |
