HP Thunderbolt 4 Ultra 180W G6 Dock
£237.60
HP Thunderbolt 4 Ultra 180W G6 Dock, Wired, Thunderbolt 4, 180 W, 10,100,1000,2500 Mbit/s, Grey, 8K Ultra HD
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Supercharge your workflow
Work without interruptions and maximize productivity with ultimate power delivery f the HP Thunderbolt 4 Ultra 180W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.
Work without interruptions and maximize productivity with ultimate power delivery f the HP Thunderbolt 4 Ultra 180W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.
Key Features
- Find true momentum with uninterrupted connections to your devices. HP Quick Connect[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 180W[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology[2] and all the ports you need to connect your setup.
- Cloud manageability with Poly Lens[4] s hands-off manageability f anywhere. Administer automatic updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.
- Prevent potential threats with HP Wolf Security[5], interlacing HP Sure Start[6] and Zero Trust Framework to provide complete end-to-end security. Work and rest easy knowing everything f the dock to the cloud is protected.
- Thoughtfully designed with longevity in mind. Durably crafted[7] with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption ule to monitor your energy consumption. Consciously wrapped in plastic-free packaging[8].
Reasons To Buy
Powerful connections in an instant
Hands-off manageability
Specifications

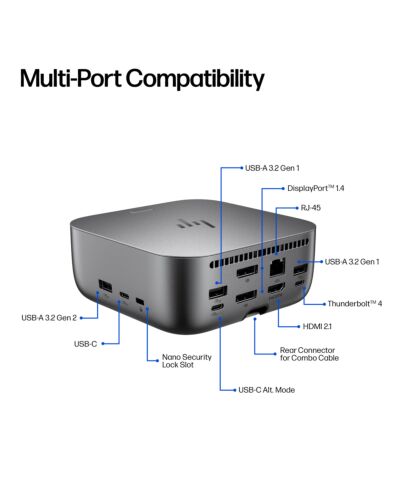

Ports & interfaces
Connectivity technology*
Wired
Host interface*
Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
180 W
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Thunderbolt 4 ports quantity
1
Microphone in*
No
Network
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Performance
Card reader integrated*
No
HD type
8K Ultra HD
Maximum refresh rate
360 Hz
Cable lock slot
Yes
Cable lock slot type
Nano
Product colour*
Grey
LED indicators
Power
Country of origin
China, Thailand, Mexico
Compatibility
Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
HP segment
Business
Power
Power supply
230 W
Software
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
MacOS
Linux operating systems supported
Yes
Other operating systems supported
CheOS
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
-15 - 3048 m
Non-operating altitude
-15 - 12192 m
Weight & dimensions
Width
121 mm
Depth
121 mm
Height
49.5 mm
Weight
790 g
Packaging data
Package width
396 mm
Package depth
171 mm
Package height
95 mm
Package weight
1.14 kg
Packaging content
Warranty card
Yes
Cables included
AC
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 198415314925; (ABU) 198415314994
HP GTIN (EAN/UPC)
198415314925, 198415314994
Technical details
Box contents
HP Thunderbolt 4 Ultra 180W G6 Dock; 230 W power adapter; Thunderbolt™ 4 cable (1 m); Power cord; Product notice; Warranty card
General Product Safety Regulation (GPSR) URL
Logistics data
Master (outer) cases per pallet layer
28 pc(s)
Other features
Compatible operating systems
Windows 10; Windows 11; macOS; Linux; ThinPro; CheOS
Pallet dimensions (W x D x H) (imperial)
1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51")
Pallet dimensions (W x D x H)
1200 x 1000 x 140 mm
UNSPSC-code
43211602
Bundled software
Poly Lens with automatic updates
Additional Information
| EAN/UPC | 198415314994 |
|---|---|
| MPN | 9X481UT#ABU |
| BRAND | HP |
Disclaimer
[1] HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth required. Not available on TAA versions. Contact your local sales representative to learn more.
[2] For full data and video capability, the PC must support either: DisplayPort™ alt e, Thunderbolt™ 3 alt e, or USB4 through its USB-C port. Charging and port tion are supported on notebooks that have implemented the USB-C Power Delivery specifications. HP Quick Connect, Wake-on LAN f warm and cold dock, Wake-on LAN f S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
[3] Up to 180W power delivery through the Thunderbolt™ 4 cable available on PC's that support PD 3.1.
[4] Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
[5] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
[6] Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing , Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports integrity verification and recovery during dock start-up and disconnect. It does not include -time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
[7] HP Total Test Process testing is not a guarantee of future performance under these test conditions. Damage under the HP Total Test Process test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
[8] HP packaging for this product is reported by suppliers as plastic free. Packaging refers to the primary product box and all materials inside, excluding any additional boxes provided by third parties, bulk packaging, and packaging for accessories and spare parts.
Technical specification disclaimers:
Requires DisplayPort™ 1.4 support with Display Stream Compression.
For full data and video capability, the PC must support either: DisplayPort™ alt e, Thunderbolt™ 3 alt e, or USB4 through its USB Type-C port. Charging and port tion are supported on notebooks that have implemented the USB Type-C Power Delivery specifications. HP Quick Connect, Wake-on LAN f warm and cold dock, Wake-on LAN f S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing , Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports integrity verification and recovery during dock start-up and disconnect. It does not include -time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
Operating systems supported: Windows 10 22H2 and up, Win 10 IoT Enterprise LTSC 2021, Windows 11 23H2 and up, CheOS M133 and up, Ubuntu Linux 22.04 LTS with 5.15 kernel, ThinPro OS 8.0 and MacOS Sonoma 14. Not all features work with all operating systems, ask your sales representative about compatibility with your PC. Linux, CheOS, MacOS, and ThinPro OS testing currently underway and expected to be completed after launch.
The dock power button may support non-HP notebooks that have implemented USB Power Delivery specification to support Extended Alert messages.
Please refer to the User Guide for LED light behaviors. The User Guide can be found on .
Your computer might support Wake on LAN f the Off, Sleep or Hibernate States, or only when the computer is On or in Sleep.
Your computer might support MAC address pass-through on the On, Off, Sleep or Hibernate States, or only when the computer is On or in Sleep. Thunderbolt™ host systems require Thunderbolt™ software (minimum SW17.x). Ethernet drivers need to be installed separately on non-HP Windows systems for headset auto switching functionality. Drivers available on HP website. For Apple PCs, HP does not provide ethernet and audio drivers. updates on Window-based host systems only. Certain features are not functional on non-HP supported nor non-HP notebooks:
• Power button to turn on or wake the system.
• Wake on LAN f warm and cold dock.
• Wake on LAN f S4/S5.
• MAC Address pass-through S0, S3, S4, S5 when connecting an on or off notebook to the dock.
Feature(s) not available on TAA docks.
Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth required. Not available on TAA versions. Contact your local sales representative to learn more.
Video resolution and support is dependent on the maximum capability of the notebook.
Compatible with the following HP locks: 63B28AA - HP Nano Combination Cable Lock, 63B31AA - HP Essential Nano Combination Cable Lock.
Up to 180 W power delivery through the Thunderbolt 4 cable available on PC's that support PD 3.1.
Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
