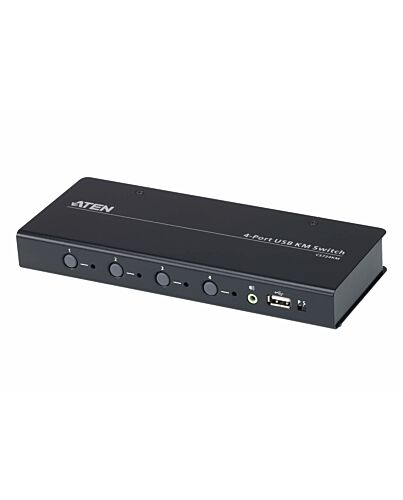

ATEN 4-Port USB KM Switch
£458.42
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers f a single console.
1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
Key Features
- Single USB keyboard and mouse control up to 4 computers
- Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
- Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations f one computer to the next
- Boundless Switching Configuration Utility1 – an intuitive GUI tool that enables users to customize monitor layouts
- Boundless Switching Focus 2 – a window frame to indicate which computer that it currently has the focus
- Extended Desktops Boundless Switching up to 16 monitors3
- Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel4, and RS-232 commands
- Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
- Supports RS-232 serial commands
- Supports Windows and Linux operating systems5
- No software required6
- Bus-powered – no external power adapter required7
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
USB 2.0 Type-B ports quantity
4
Console ports*
3.5mm headphone, RJ–45, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
DC-in jack
Yes
Performance
Daisy chain
Yes
Design
Product colour*
Black
Housing material
Metal, Plastic
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
200 mm
Depth
80.6 mm
Height
25 mm
Weight
899 g
Packaging data
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.07 kg
Packaging content
Cables included
Audio (3.5mm), USB
Manual
Yes
Logistics data
Master (outer) case net weight
4.5 kg
Harmonized System (HS) code
85176200
Master (outer) case width
300 mm
Master (outer) case length
336 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
5.73 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264646232 |
|---|---|
| MPN | CS724KM |
| BRAND | ATEN |
