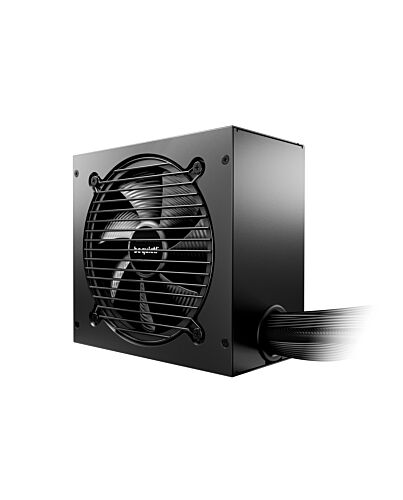

be quiet! PURE POWER 12 650W power supply unit 20+4 pin ATX ATX Black
£75.86
be quiet! PURE POWER 12 650W, 650 W, 100 - 240 V, 720 W, 50/60 Hz, 10 A, 5 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Exceptional quiet, superior features
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Key Features
- 80 PLUS® Gold efficiency (up to 92.7%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for high-end GPUs
Specifications
Power
Total power*
650 W
Peak power
720 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Maximum input current (@110V)
10 A
Maximum input current (@220V)
5 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
120 W
Combined power (+12V)
650 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V1)
54.1 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16.86 ms
Efficiency
91%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
5
SATA power cable length
500,650,800 mm
Peripheral (Molex) power connectors (4-pin)*
1
Peripheral (Molex) power cable length
800 mm
PCI Express power connectors (6+2 pin)
2
PCI Express power connectors (12-pin)
1
PCI Express power cable length
60 cm
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Performance
Noise level
18.2 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Packaging content
Cables included
AC
Cable tie(s) included
Yes
Certificates
Compliance certificates
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Weight & dimensions
Width
86 mm
Depth
160 mm
Height
150 mm
Weight
2.4 kg
Packaging data
Package width
133 mm
Package depth
320 mm
Package height
210 mm
Package weight
2.8 kg
Technical details
Sustainability certificates
ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length
42 cm
Shipping (inner) case width
34.5 cm
Shipping (inner) case height
41.3 cm
Shipping (inner) case net weight
18.1 kg
Products per shipping (inner) case
6 pc(s)
Warranty period
10 year(s)
Other features
Screws included
Yes
Additional Information
| EAN/UPC | 4260052191170 |
|---|---|
| MPN | BP002 |
| BRAND | BEQUIET |
