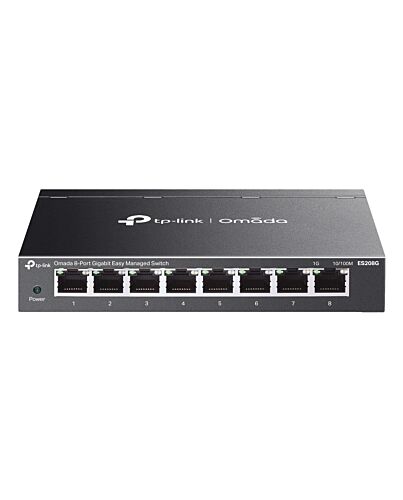

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
£29.60
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Key Features
- 8× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port lation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Unified static configuration
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Network
Networking standards*
IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
10G support*
No
Zero Touch Provisioning (ZTP)
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs
32
Data transmission
Switching capacity*
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
4 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Rack mounting*
No
Design
Stackable*
No
Product colour
Black
LED indicators
Yes
Wall mountable
Yes
Performance
Flash memory
64 MB
upgradeable
Yes
Fanless
Yes
Mean time between failures (MTBF)
1141726 h
Power
Power source*
DC
Power supply included*
Yes
DC input voltage
5 V
Input current
0.6 A
Power consumption (max)
2.7 W
Surge protection
Yes
Surge protection voltage
6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
9.09 BTU/h
Weight & dimensions
Width
158 mm
Depth
100.7 mm
Height
25.4 mm
Packaging content
User guide
Yes
Packaging data
AC adapter included
Yes
Package type
Box
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 1210002600675 |
|---|---|
| MPN | ES208G |
| BRAND | TP-LINK |
