  • APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Components

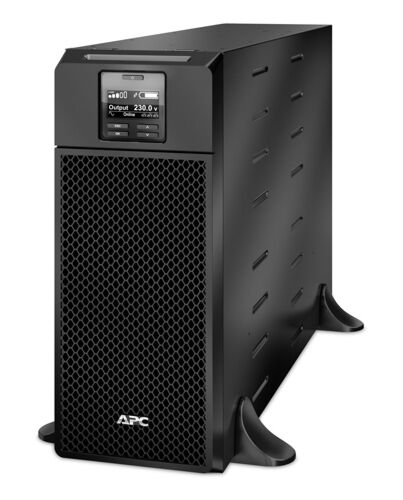

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

£5,396.65
APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 6 kVA, 6000 W, Sine, 100 V, 275 V
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Features

UPS topology*
Double-conversion (Online)
Output power capacity*
6 kVA
Output power*
6000 W
Waveform*
Sine
Input operation voltage (min)*
100 V
Input operation voltage (max)*
275 V
Input frequency*
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Number of output phases
1
Efficiency
94.4%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Auto-restart
Yes

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler
Power plug
Hardwire
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes

Battery

Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
902 VAh
Typical backup time at full load
2.5 min
Typical backup time at half load
8.7 min
Battery life (max)
5 year(s)
Battery recharge time
1.5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes

Design

Form factor*
Rackmount/Tower
Product colour*
Black
Display type
LCD
LED indicators
Status
International Protection (IP) code
IP20

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m

Certificates

Compliance certificates
RoHS
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Packaging content

Cables included
USB cable
Quick installation guide
Yes

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Width
174 mm
Depth
719 mm
Height
432 mm
Weight
60 kg

Packaging data

Temperature sensor
Yes
Warranty card
Yes
Software CD
Yes
Package width
610 mm
Package depth
960 mm
Package height
370 mm
Package weight
67 kg

Logistics data

Products per pallet
6 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
13539.46

Other features

Packaging content
Removable support feet Web/SNMP Management Card

Additional Information

More Information
EAN/UPC 731304301660
MPN SRT6KXLI
